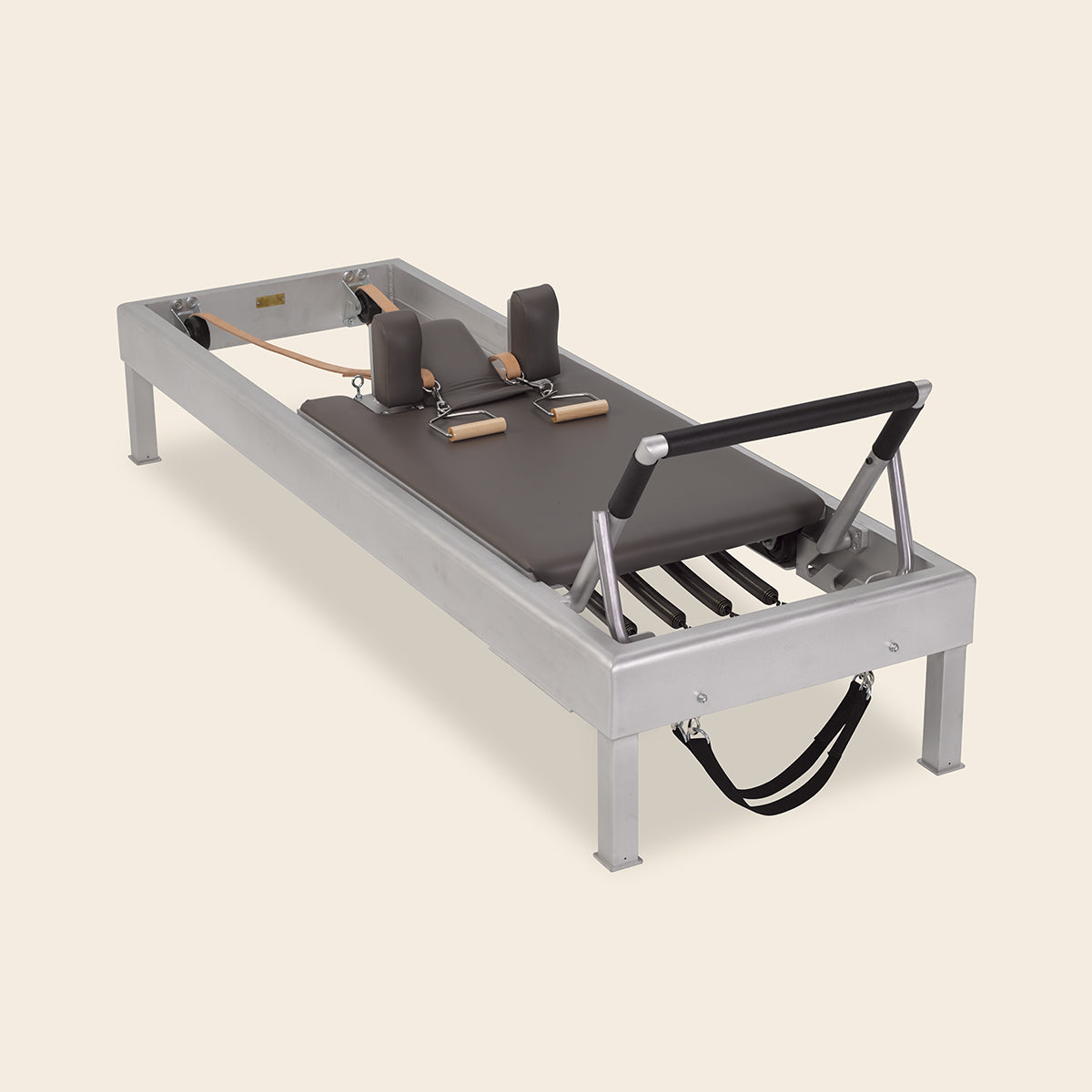

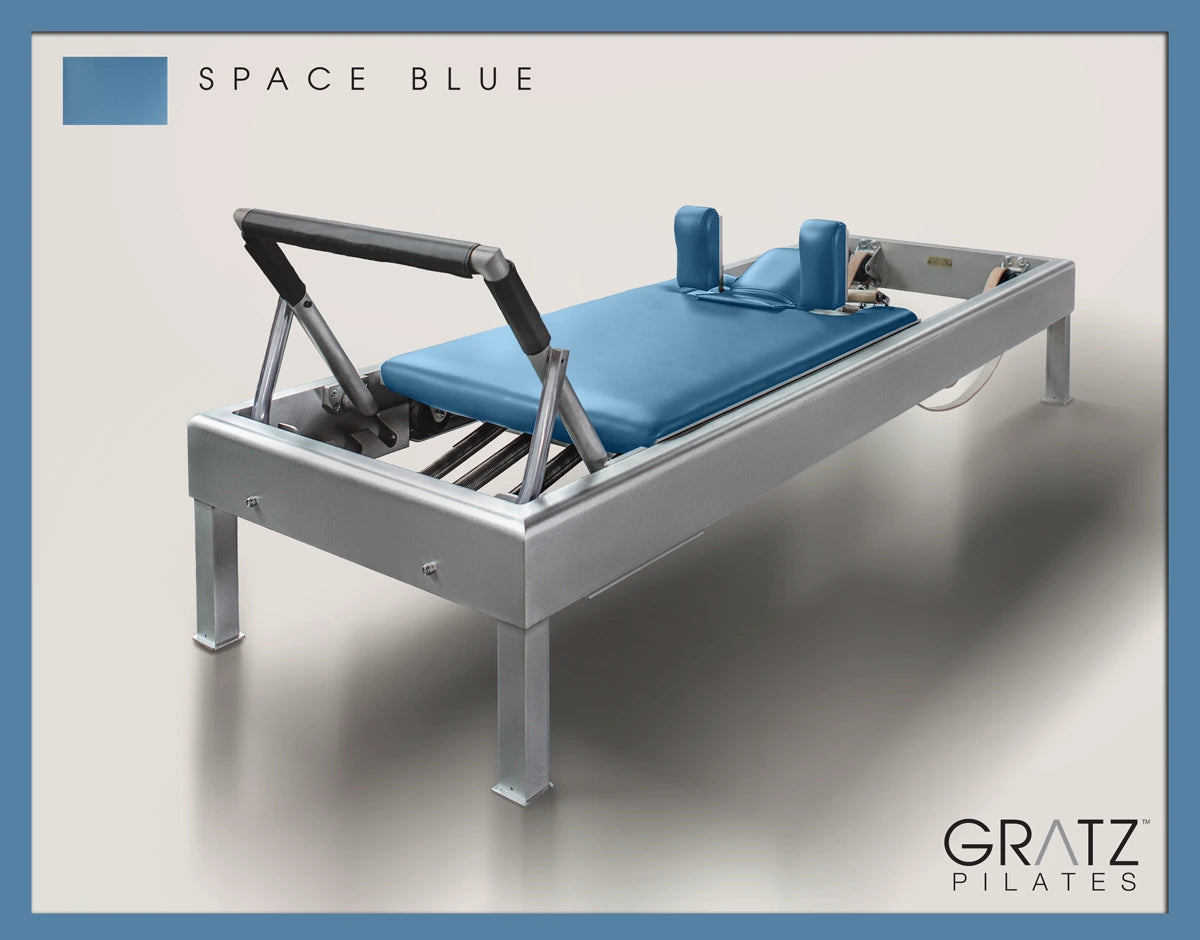

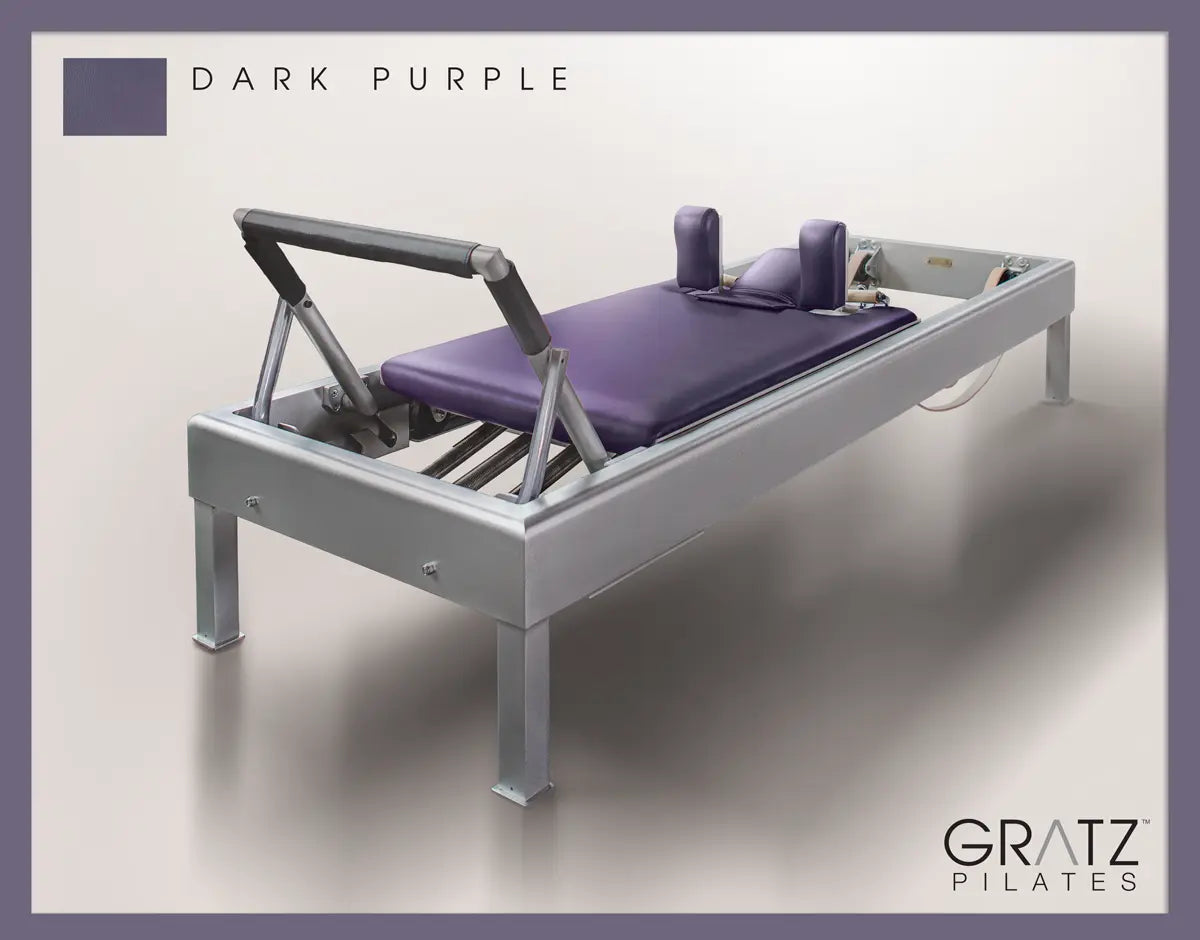

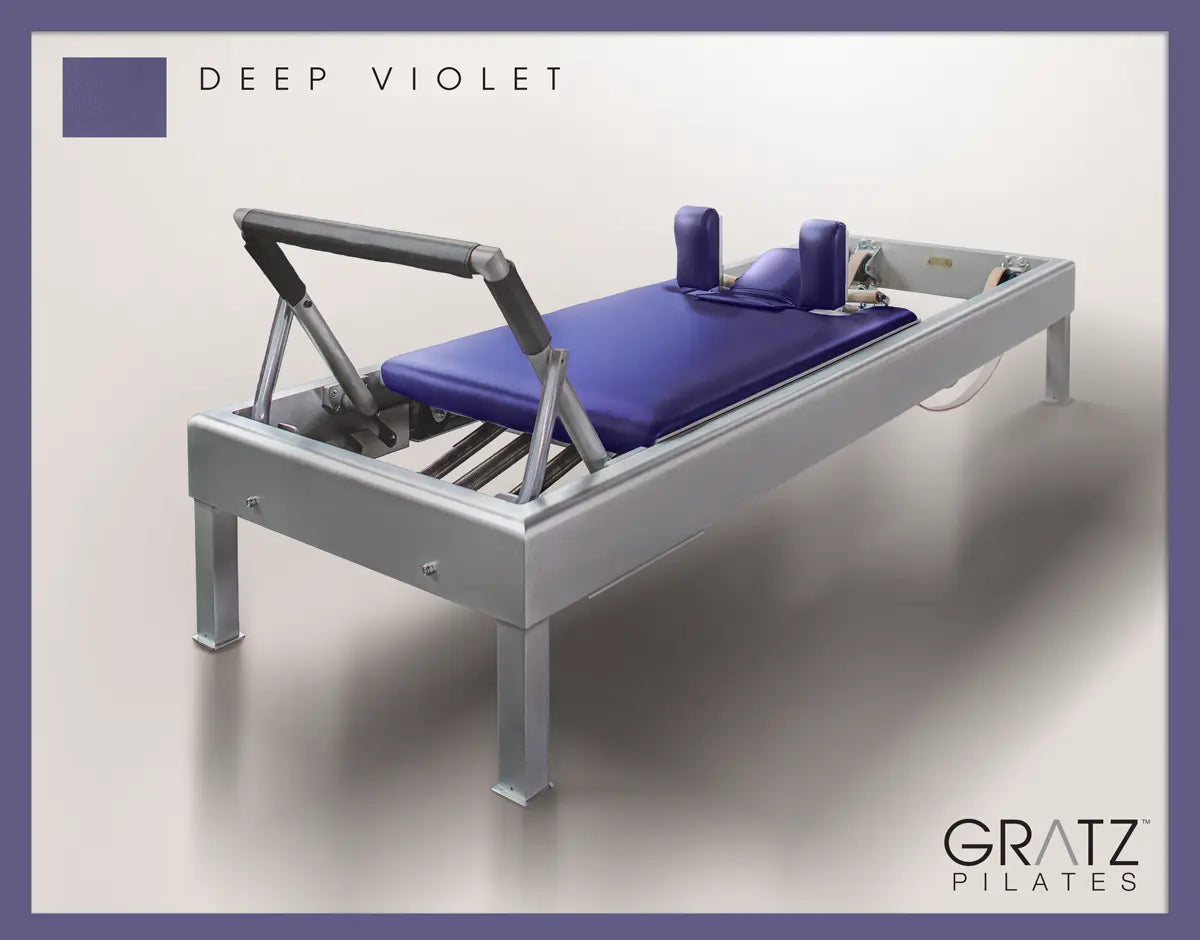

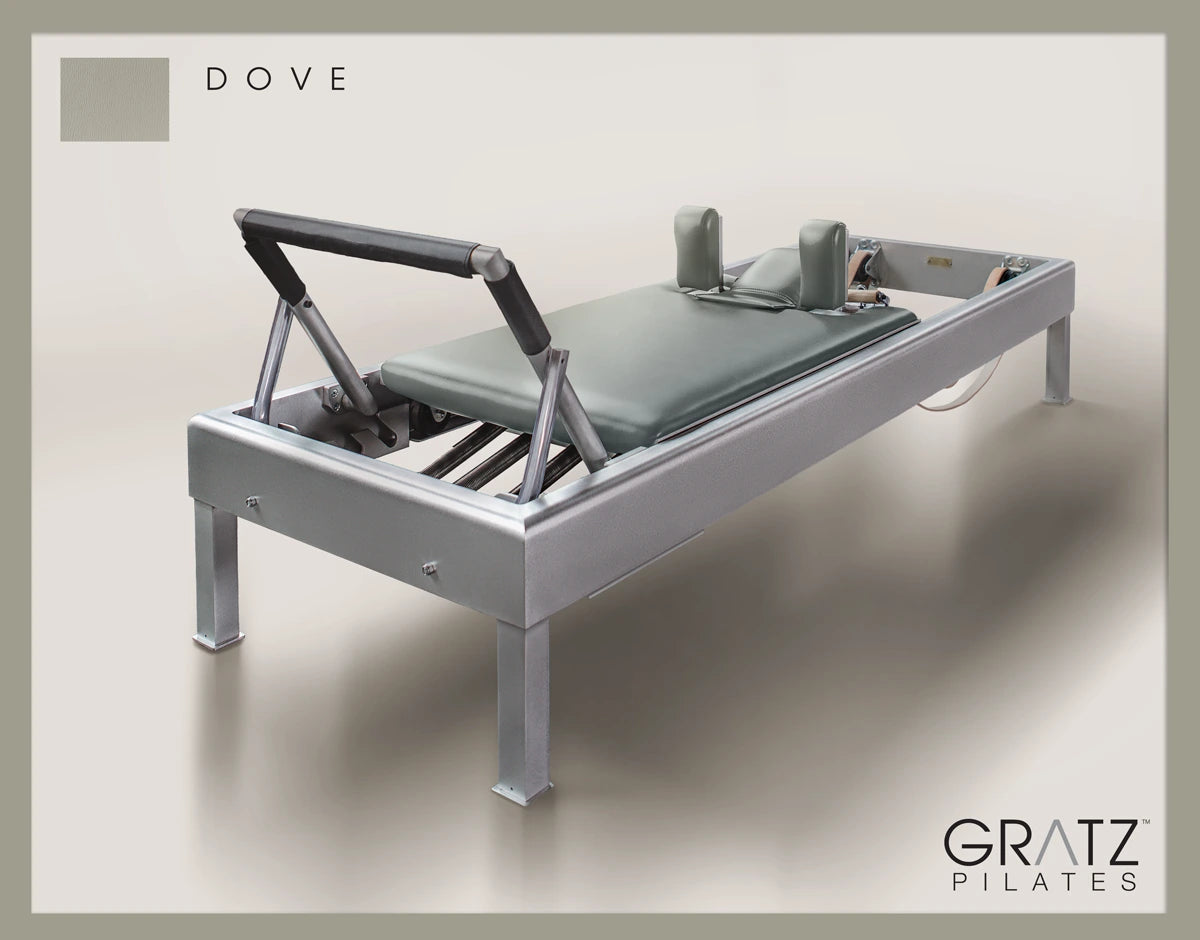

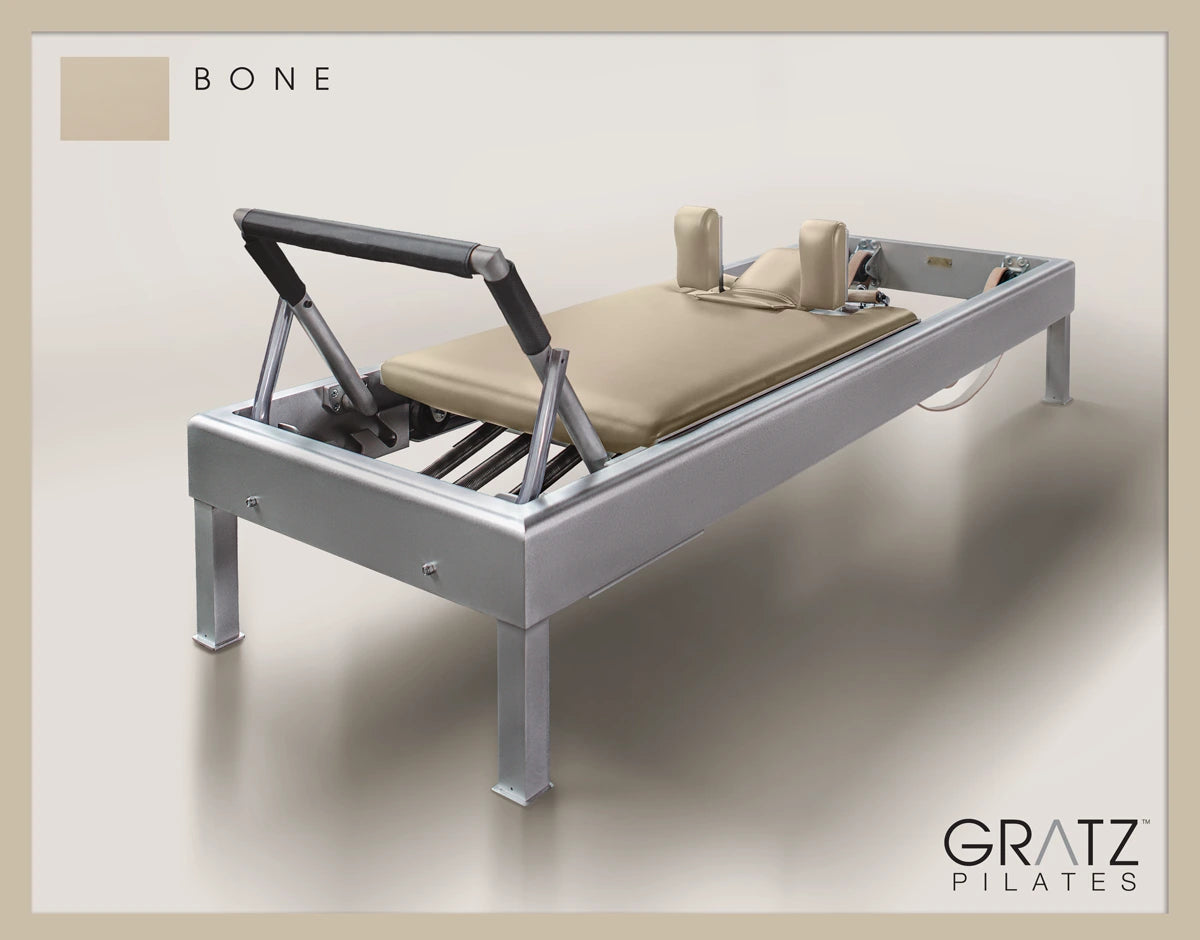

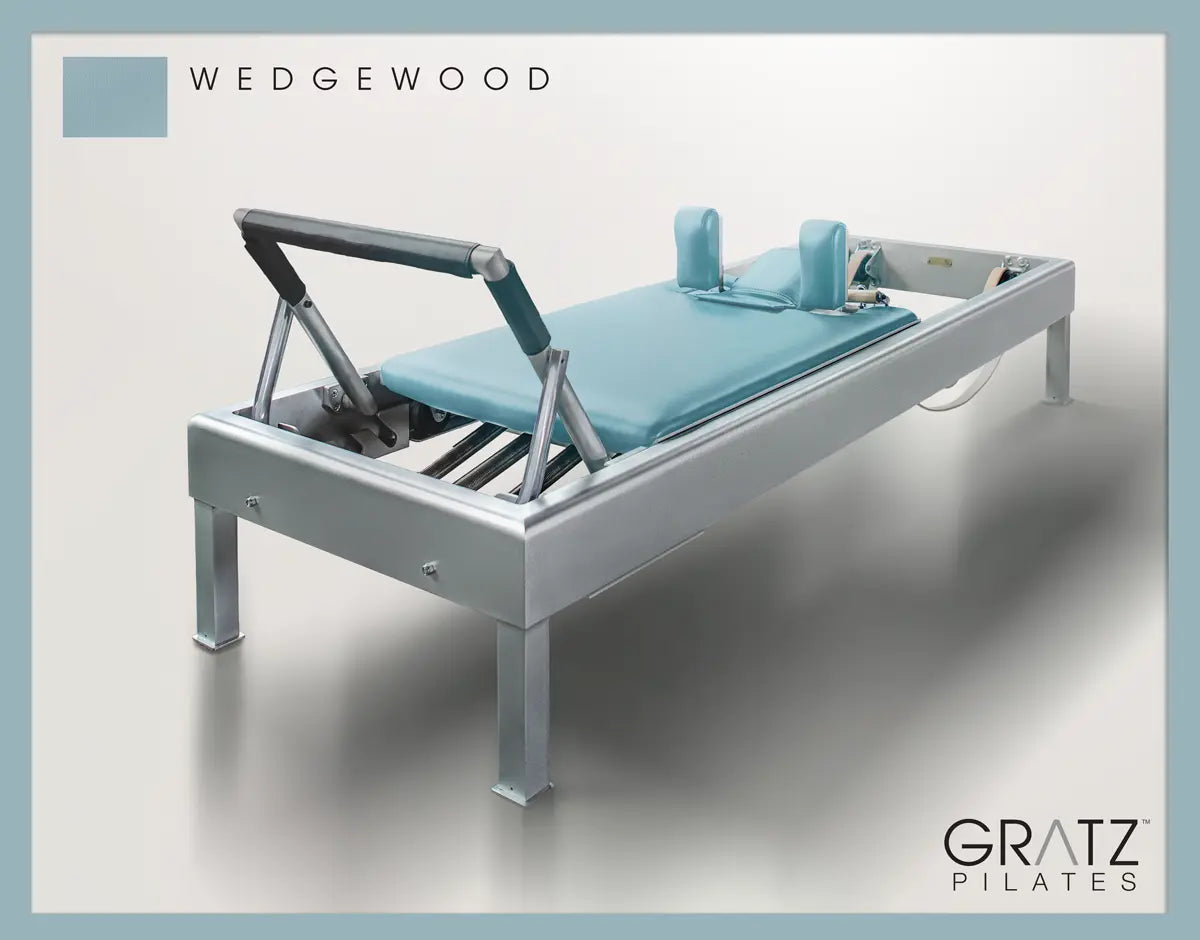

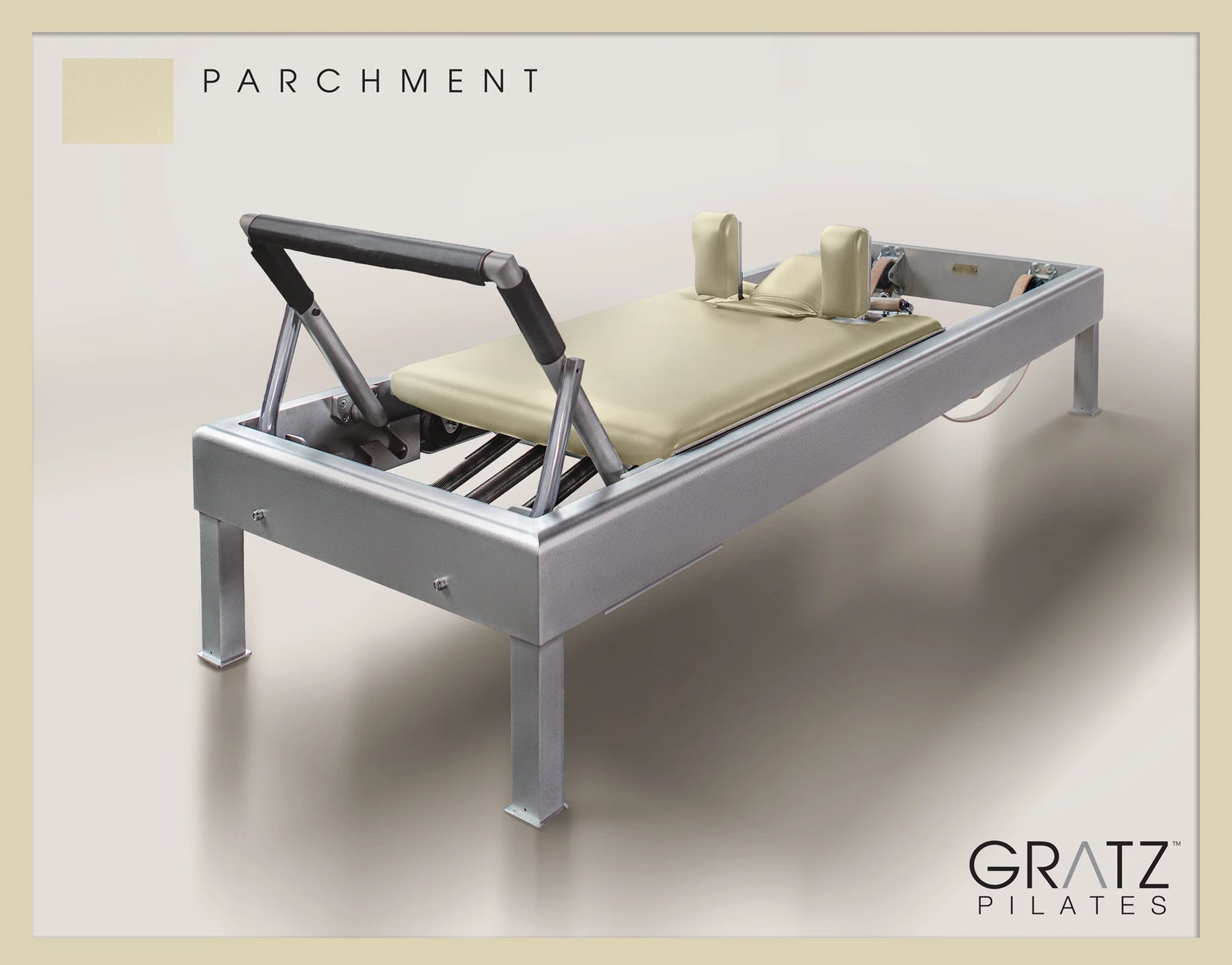

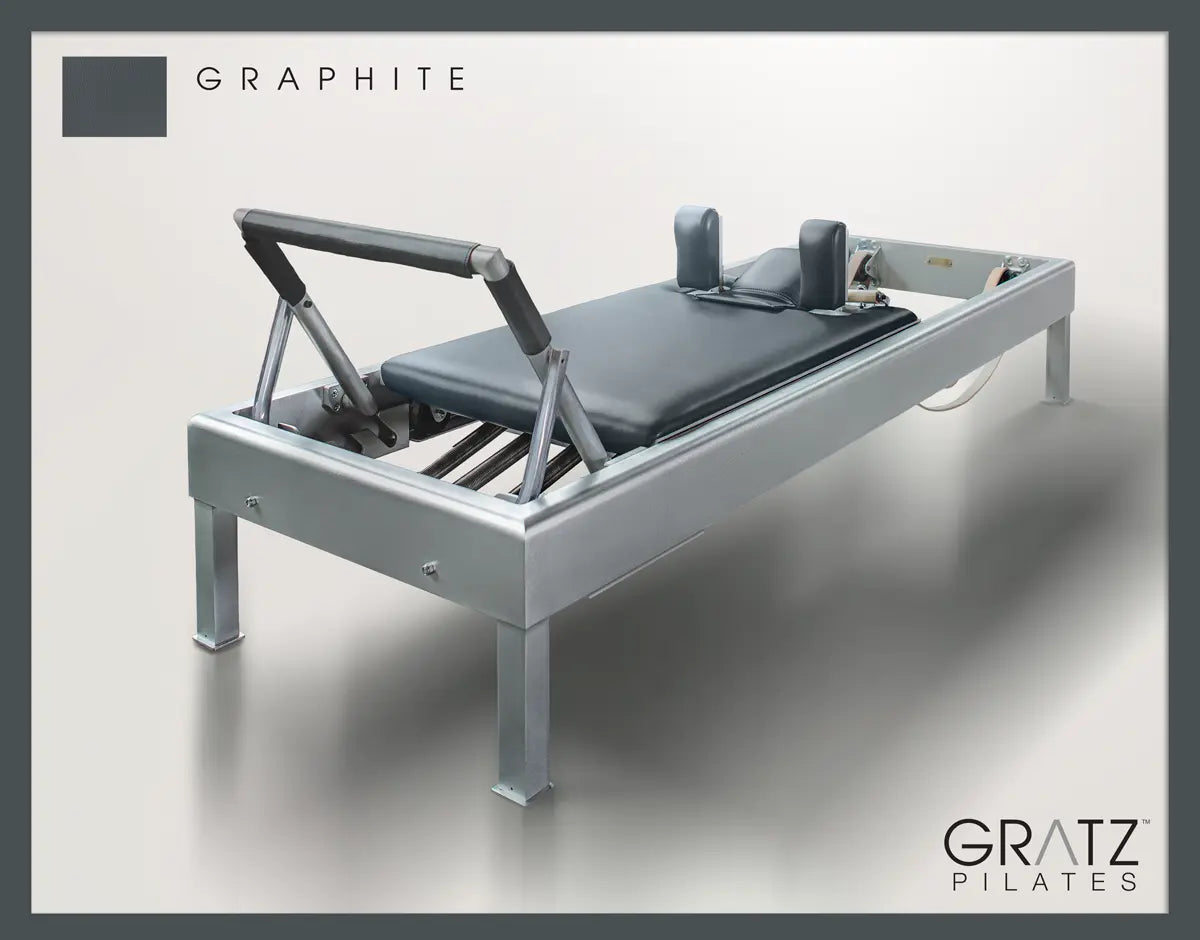

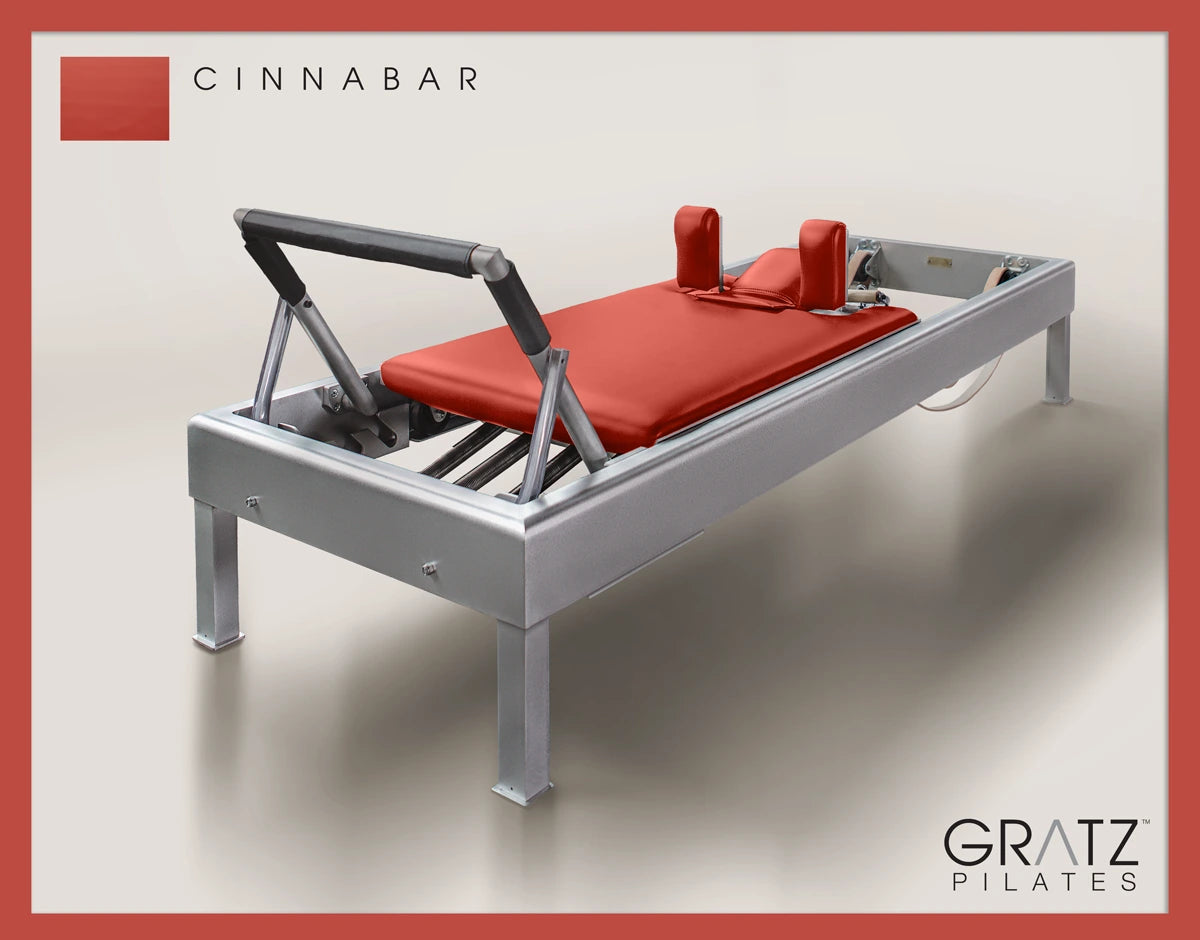

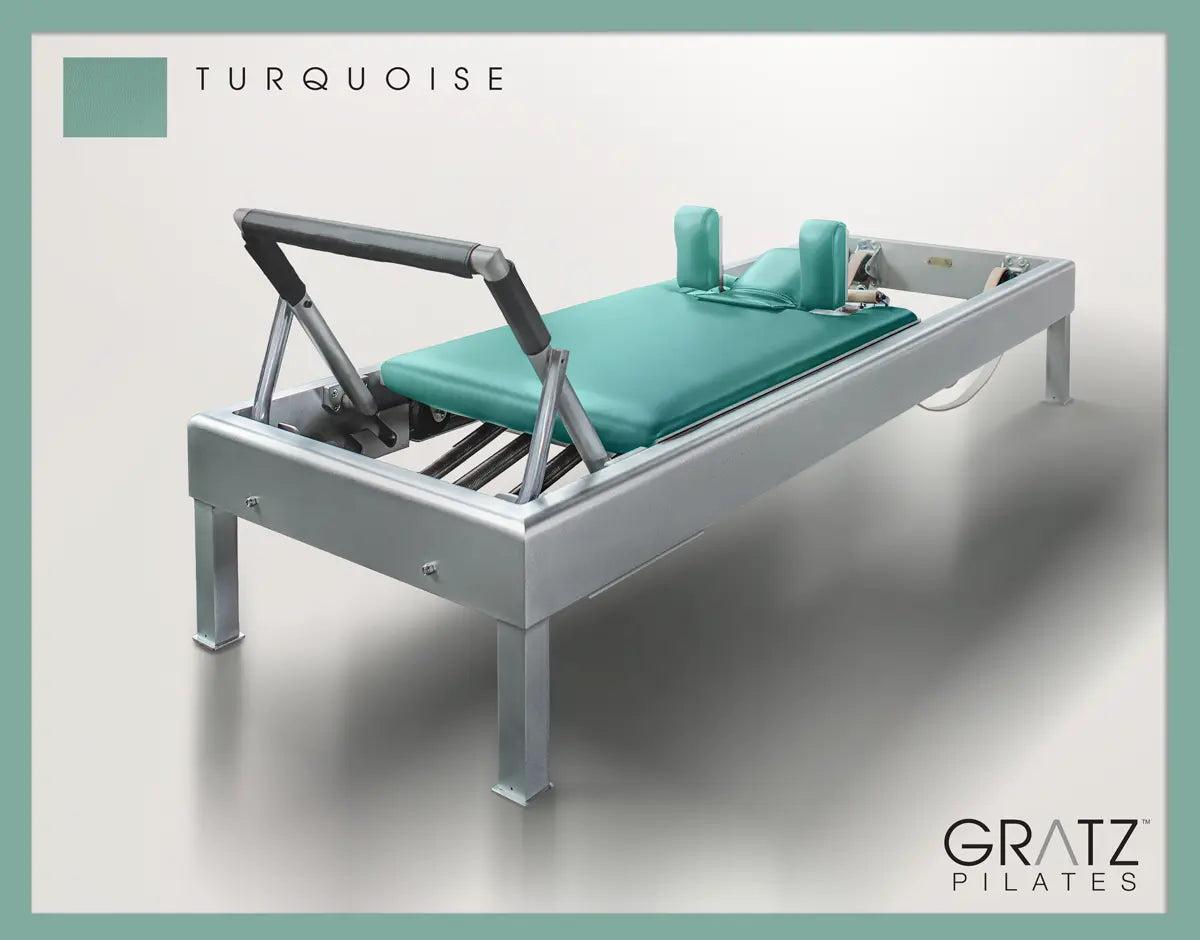

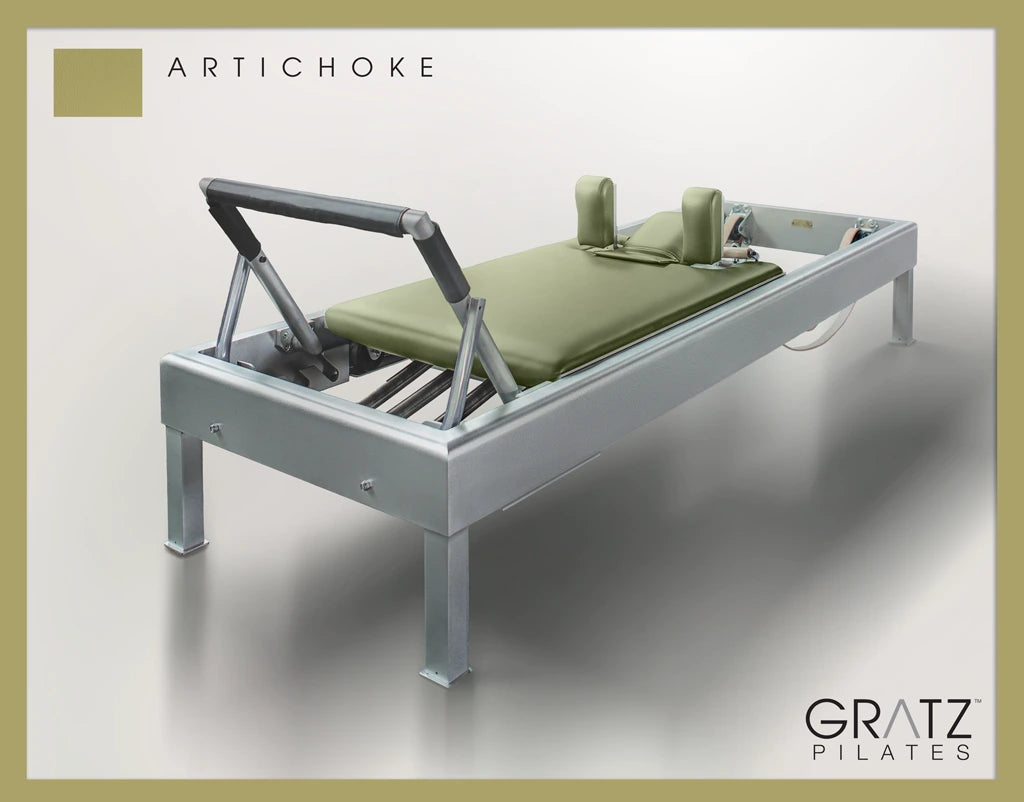

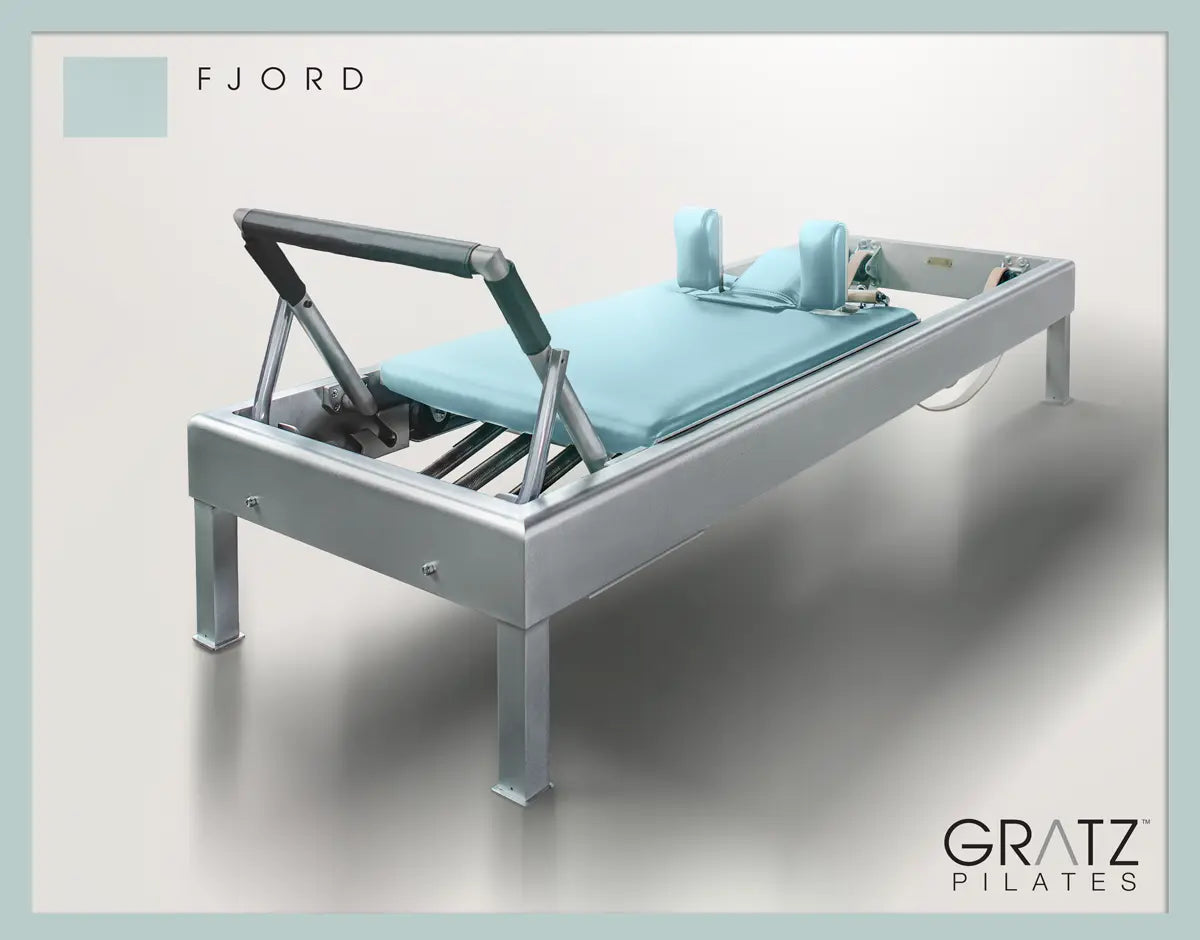

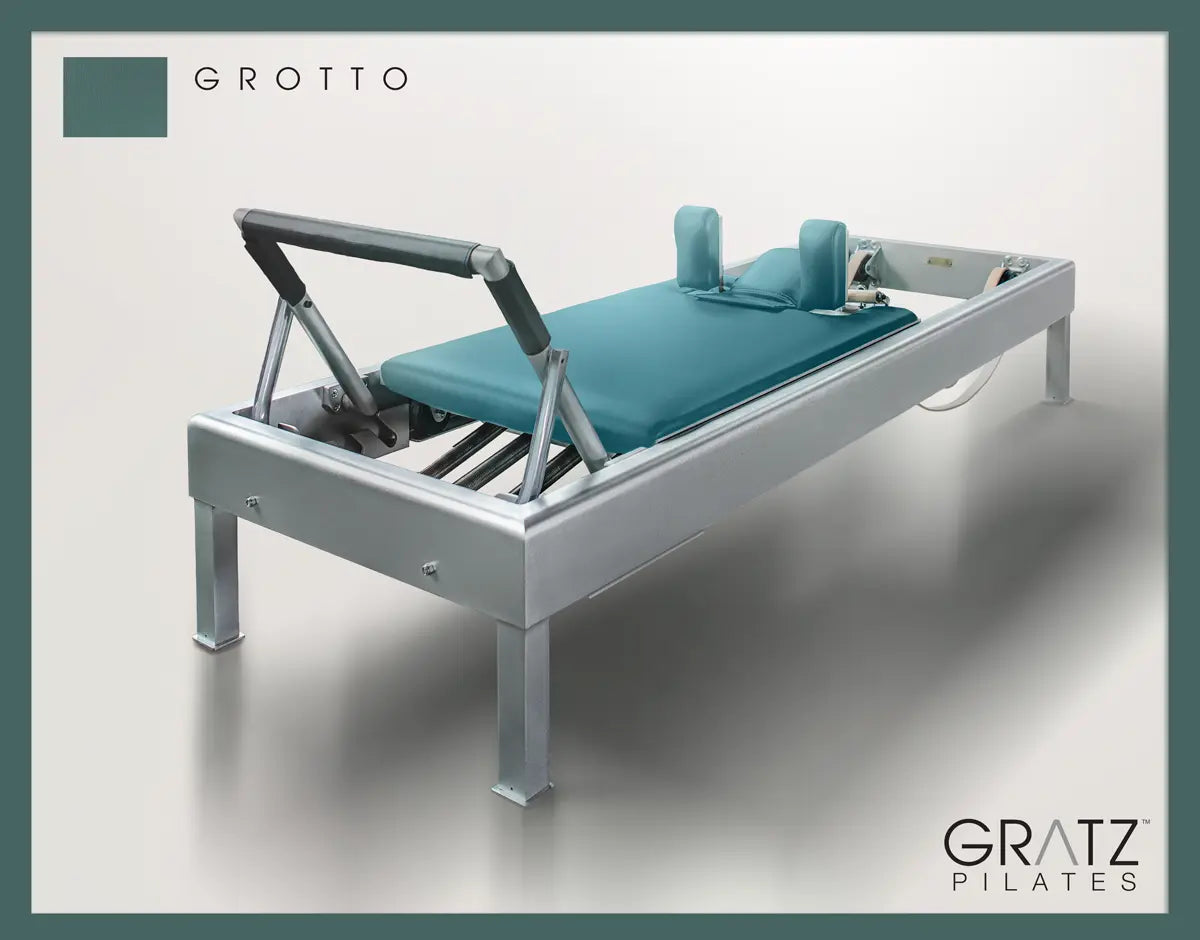

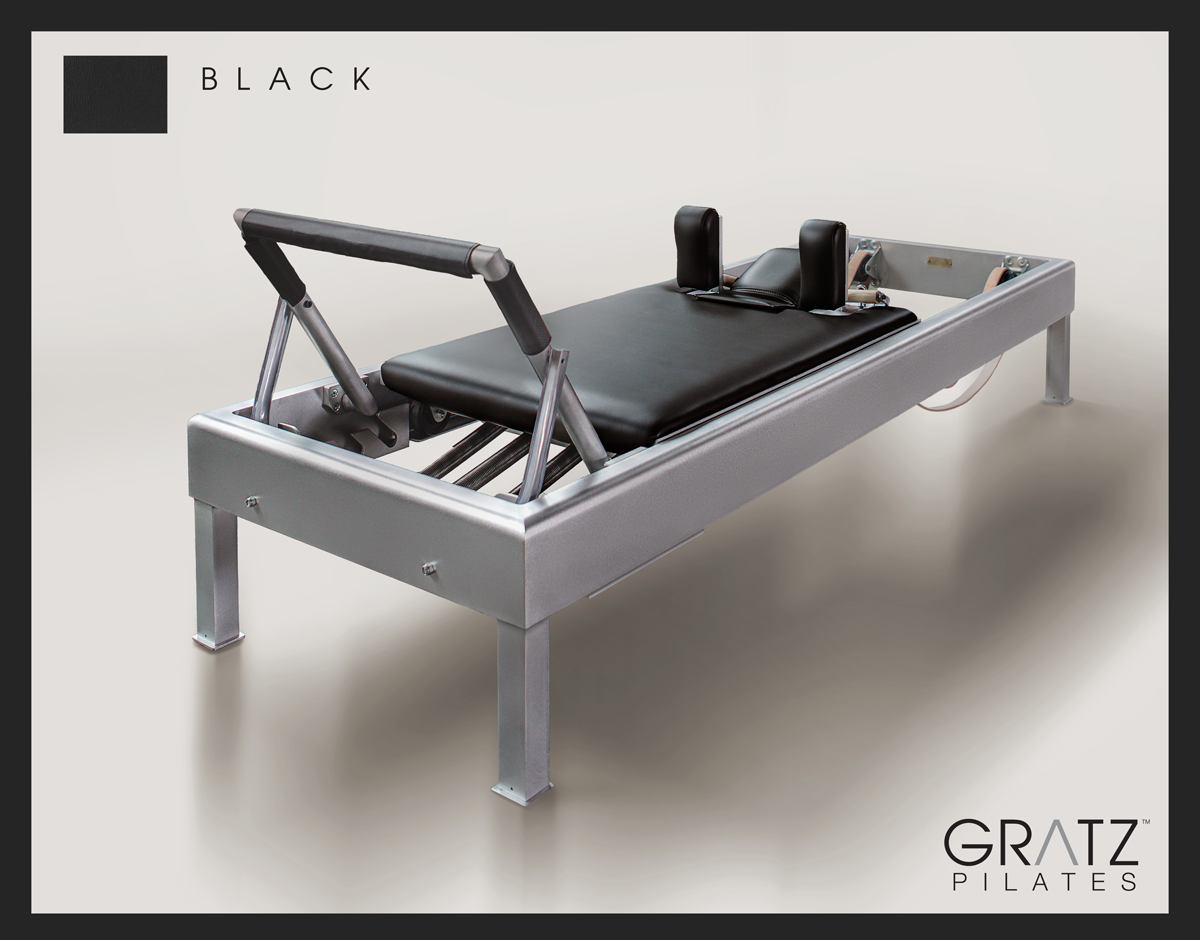

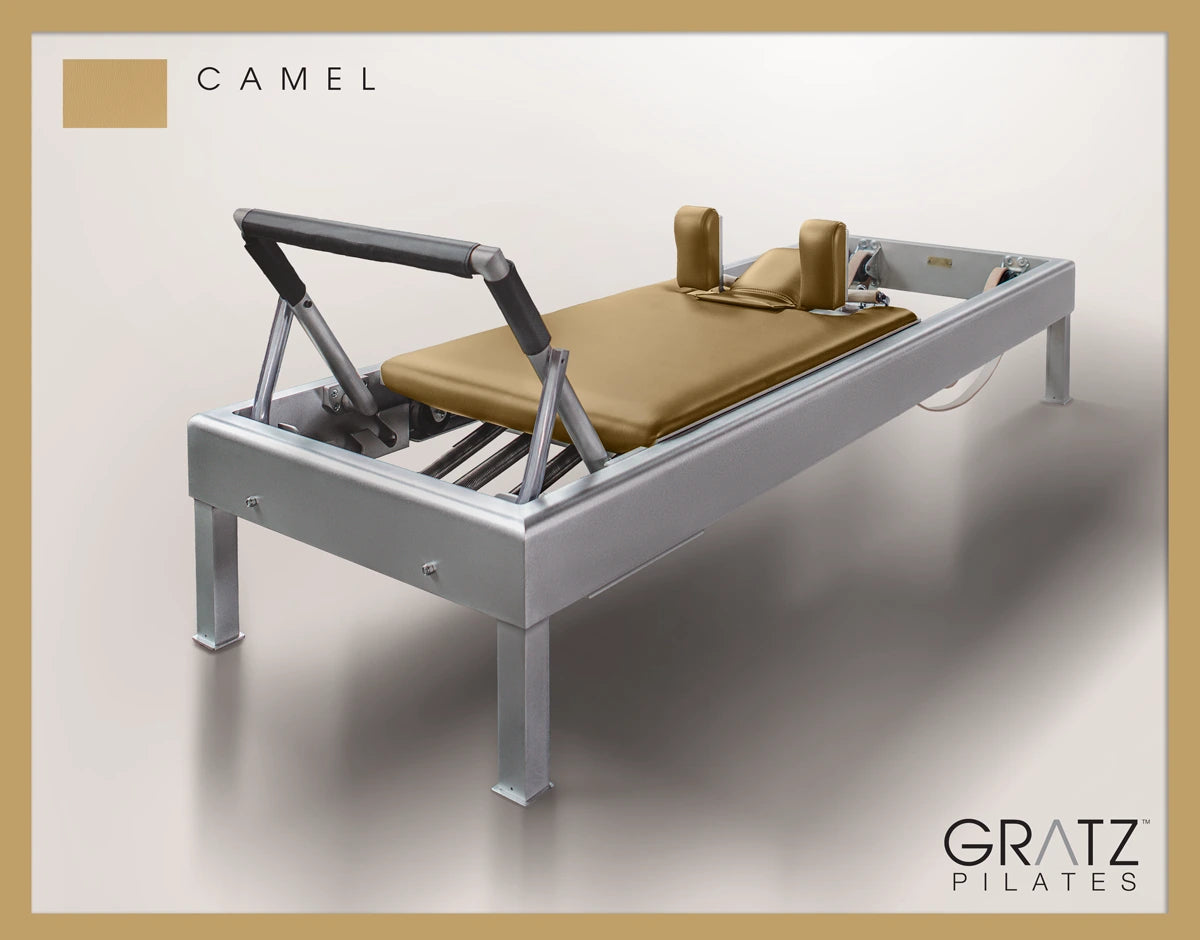

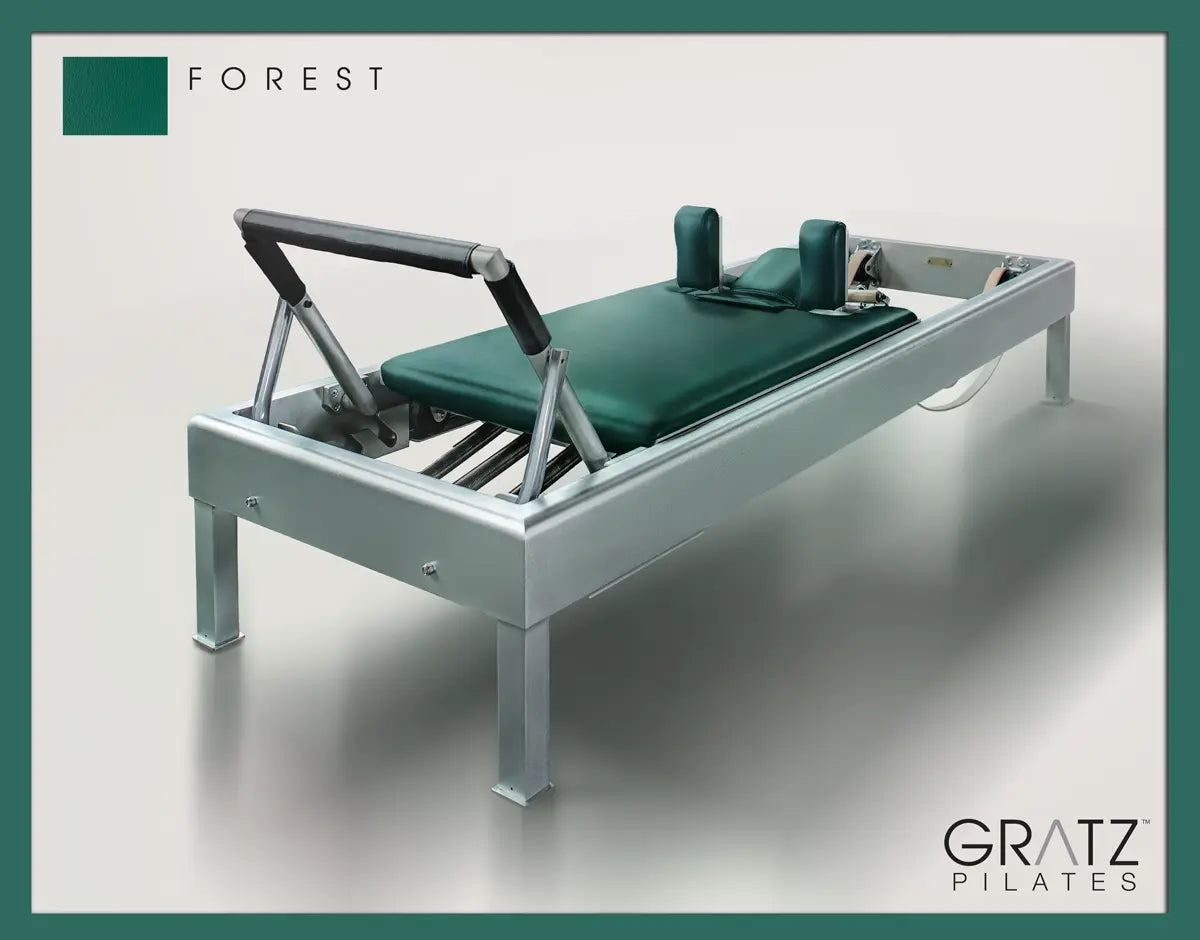

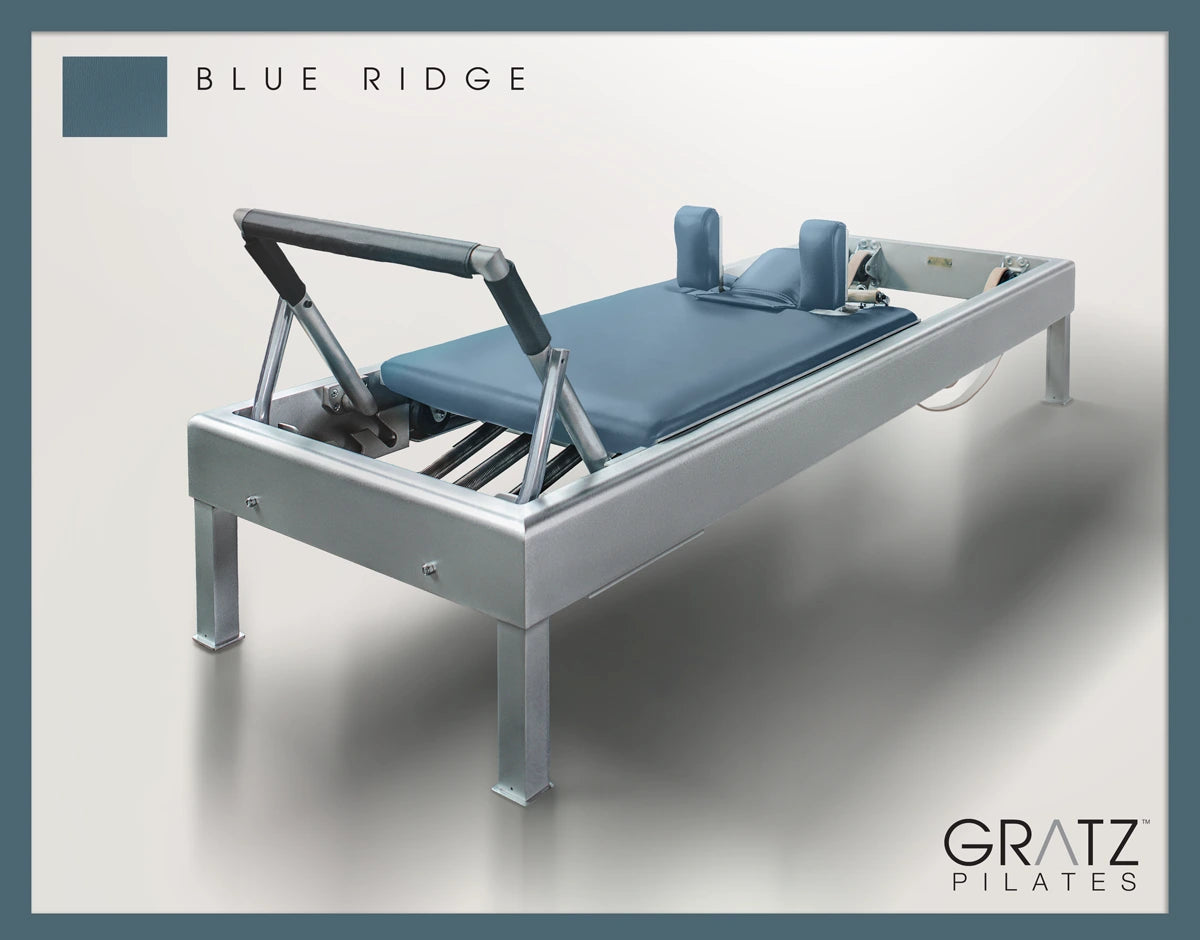

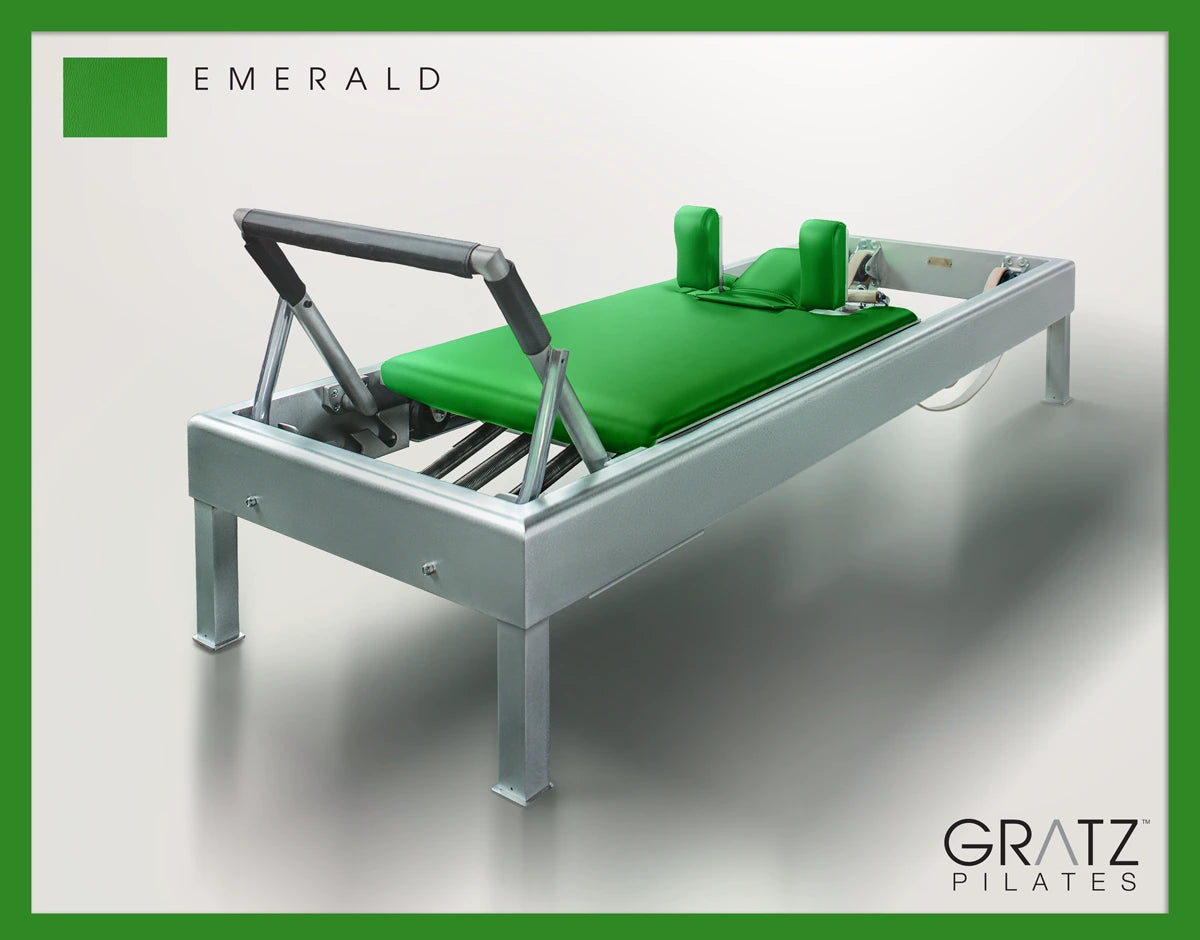

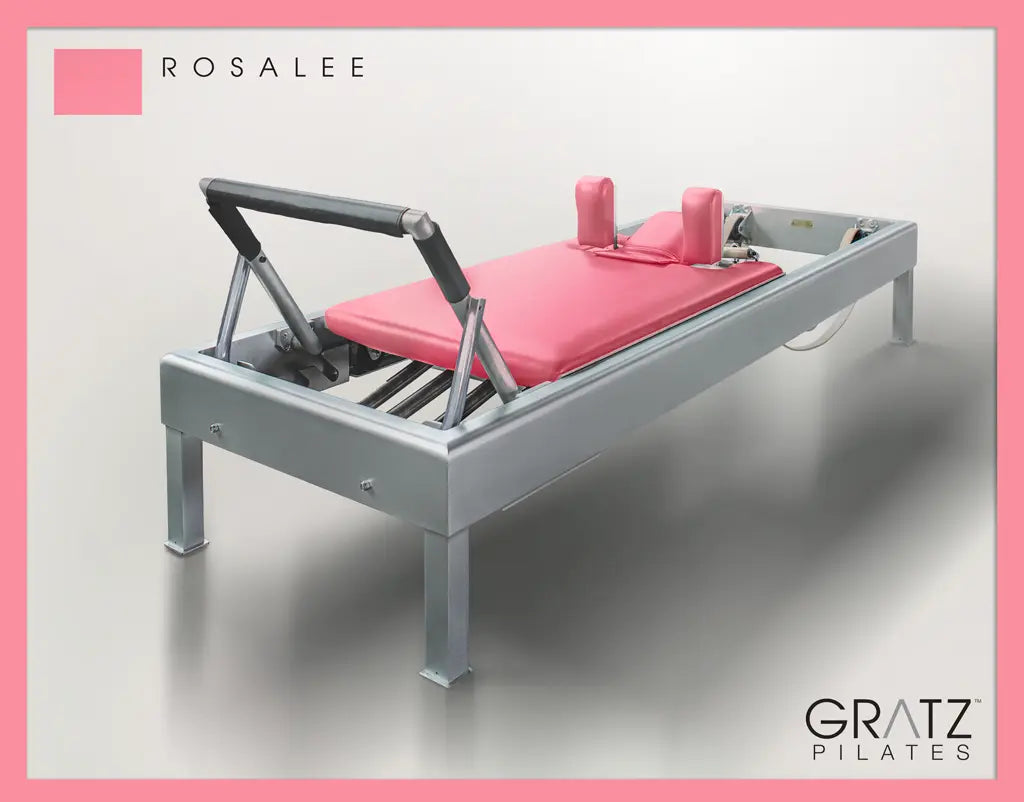

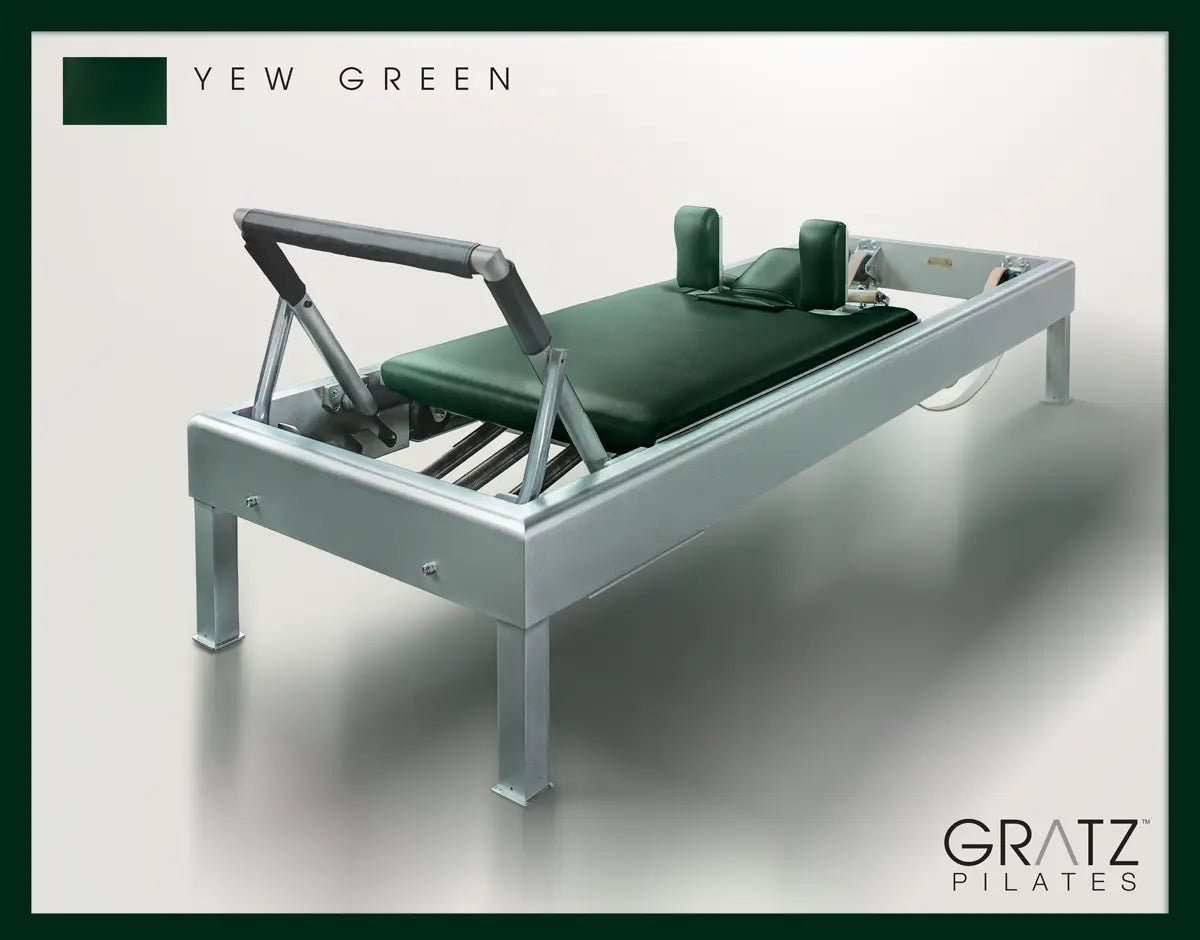

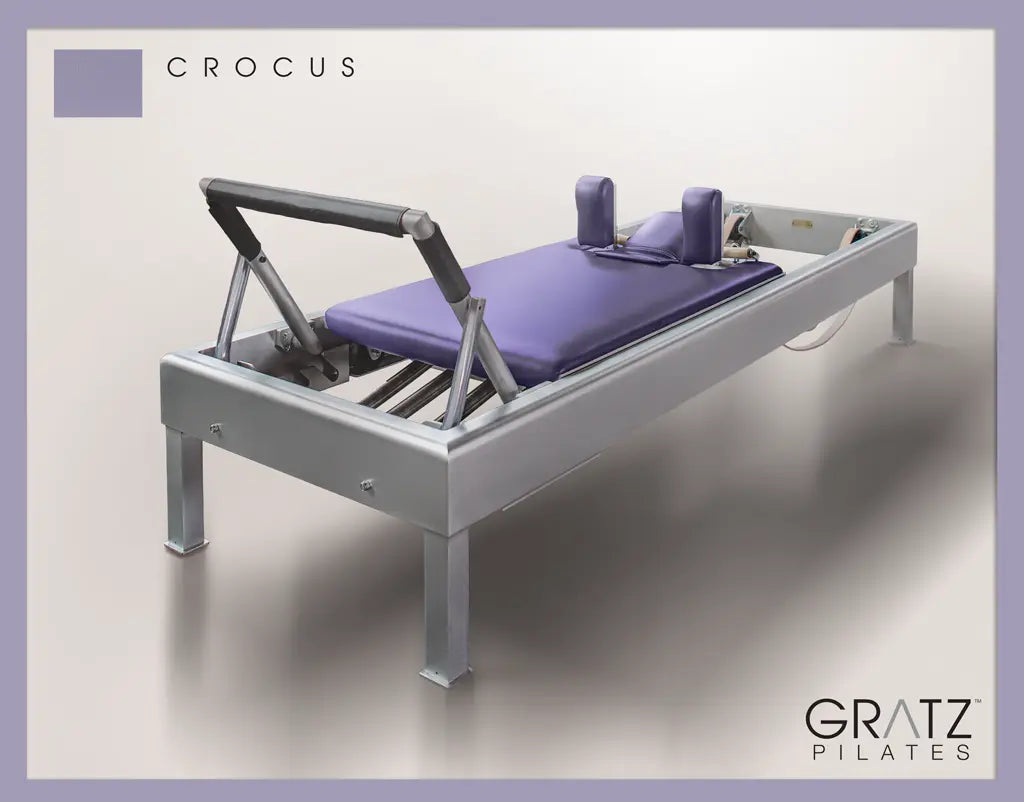

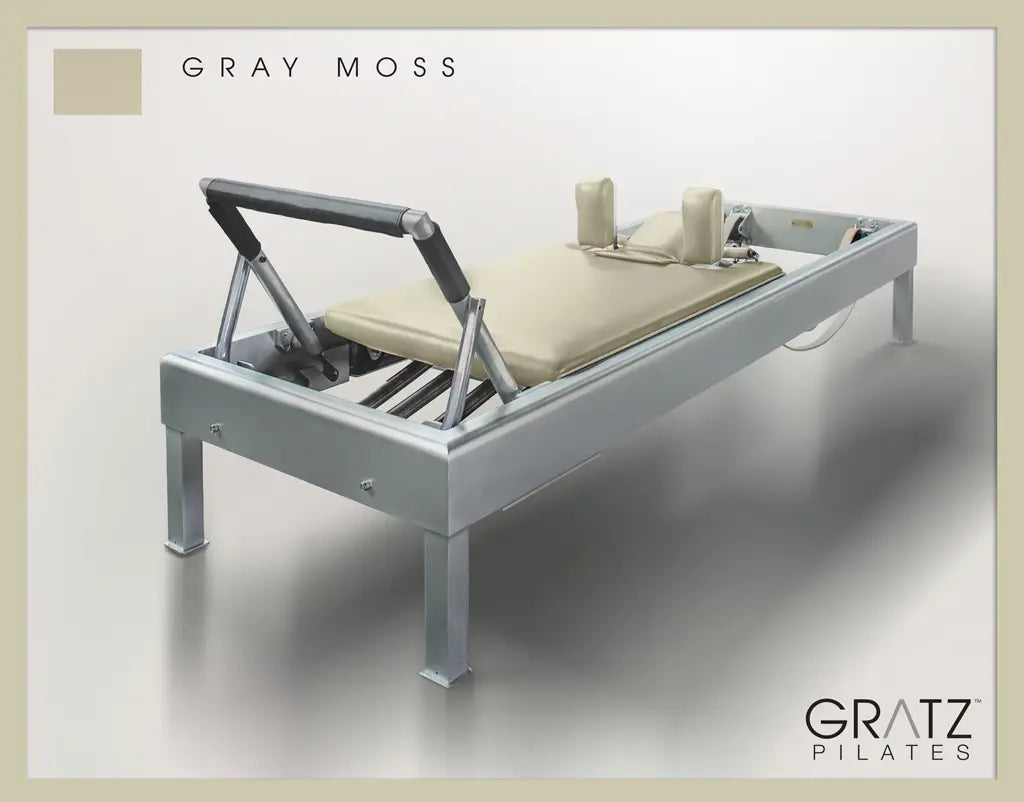

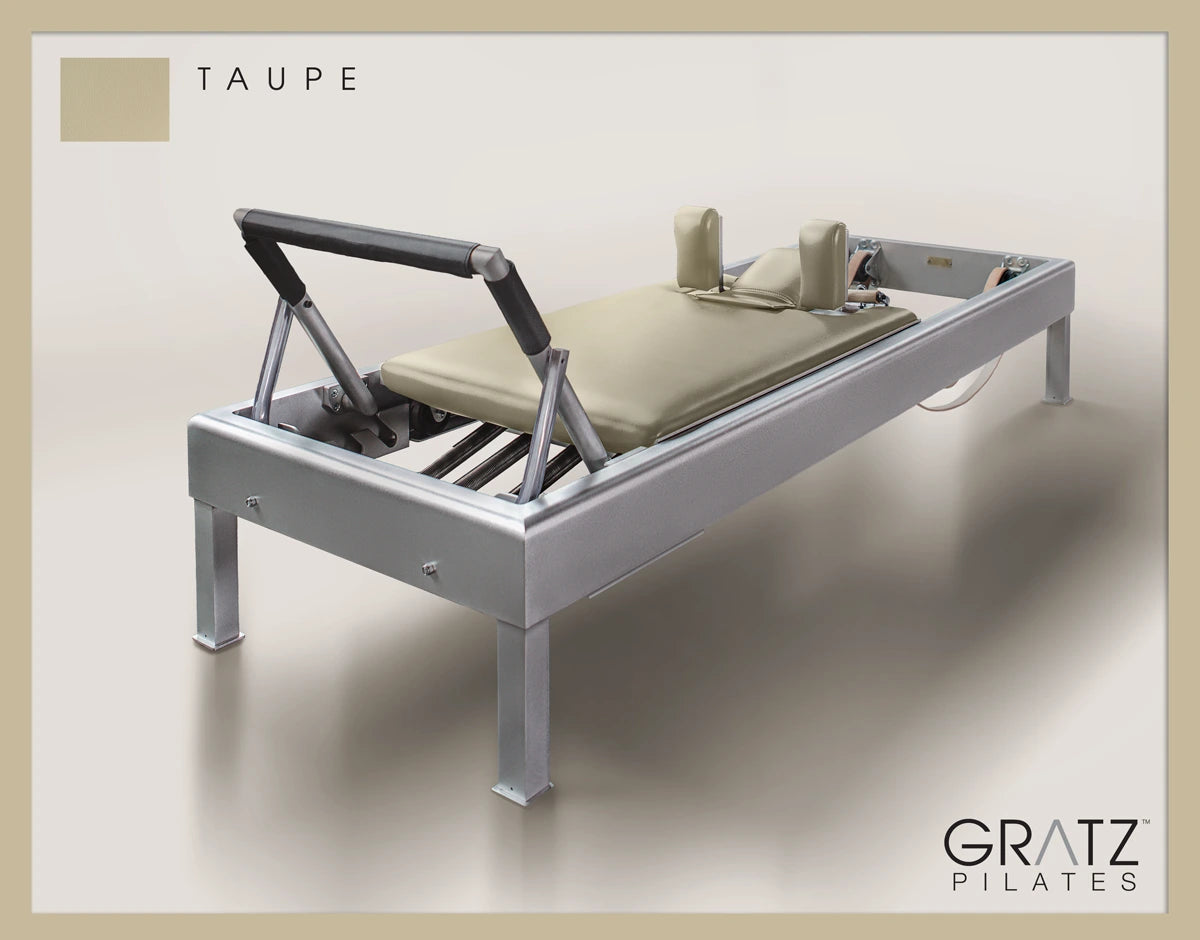

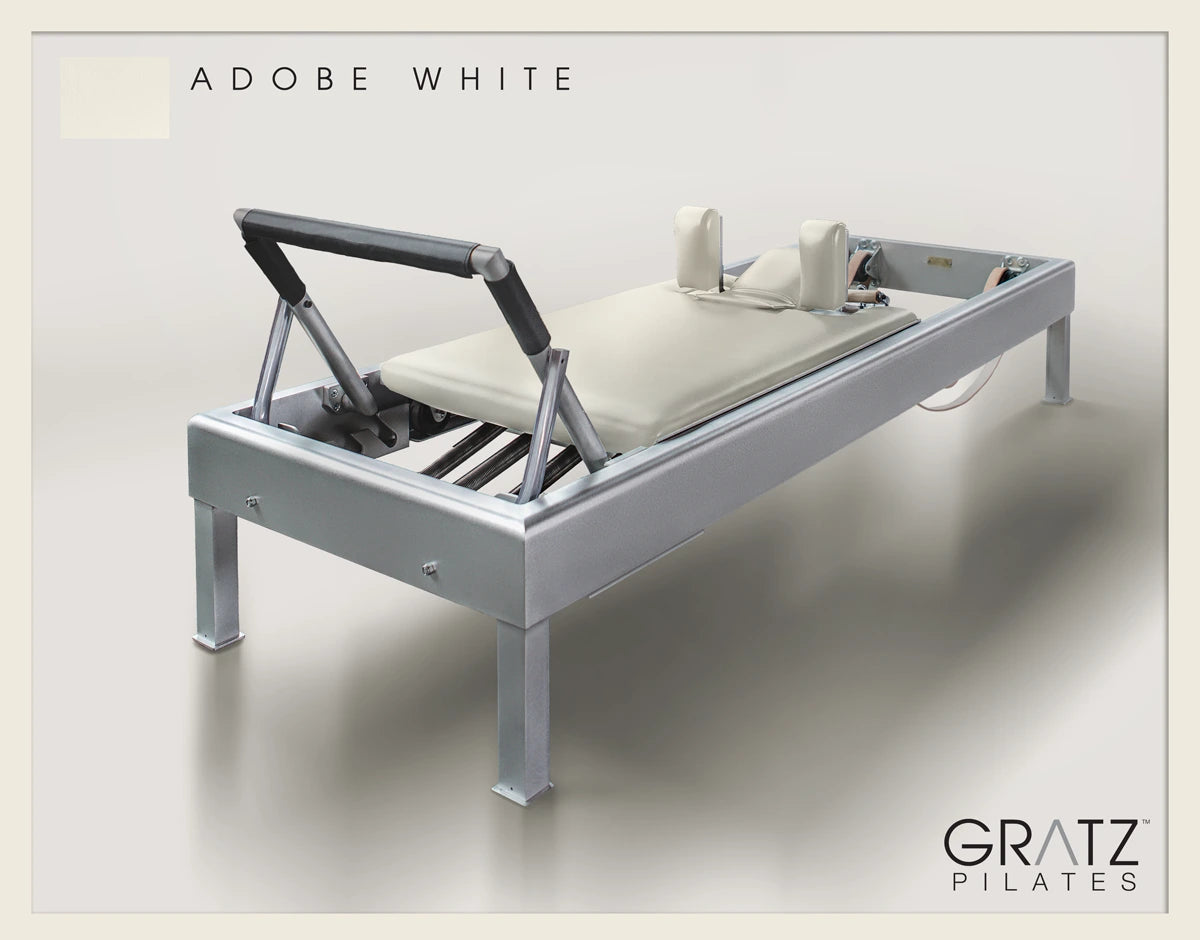

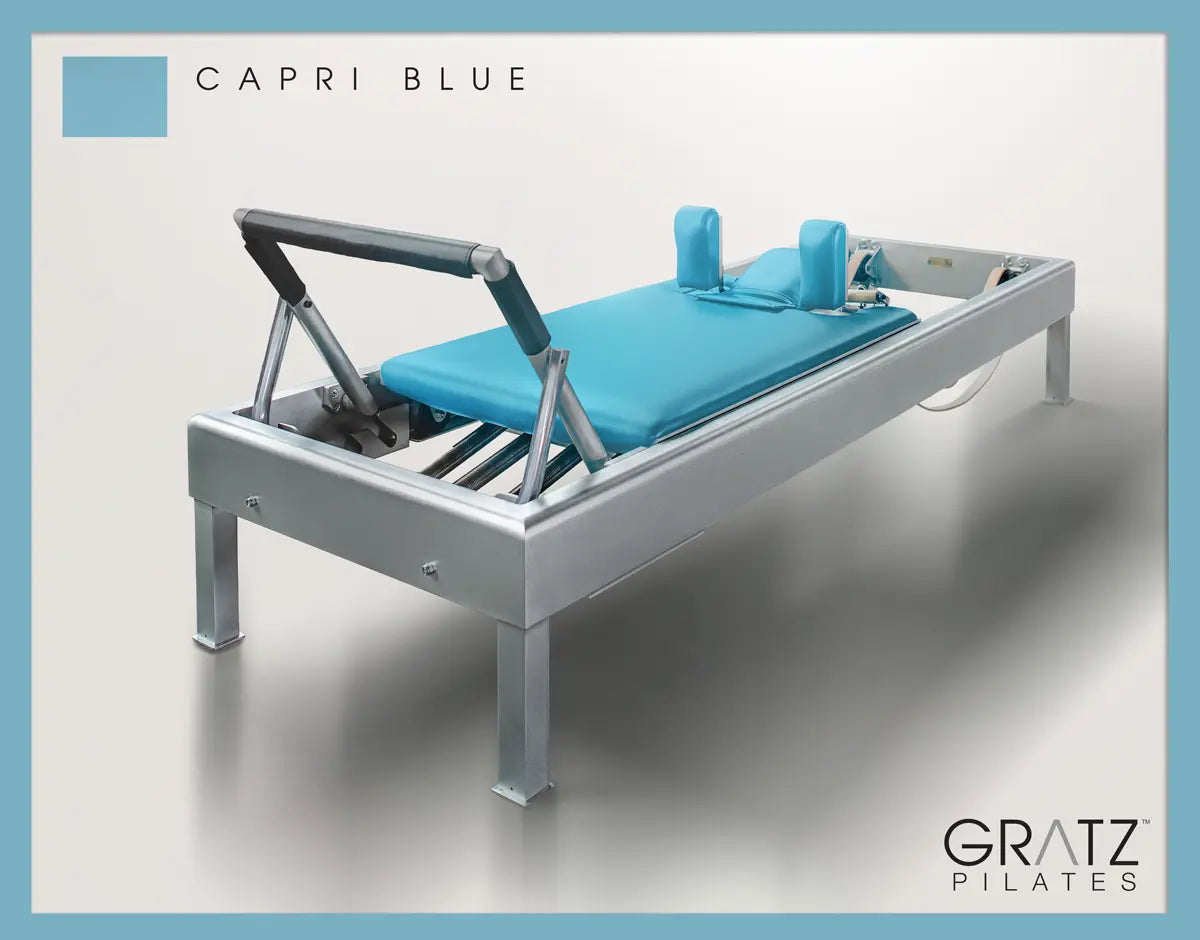

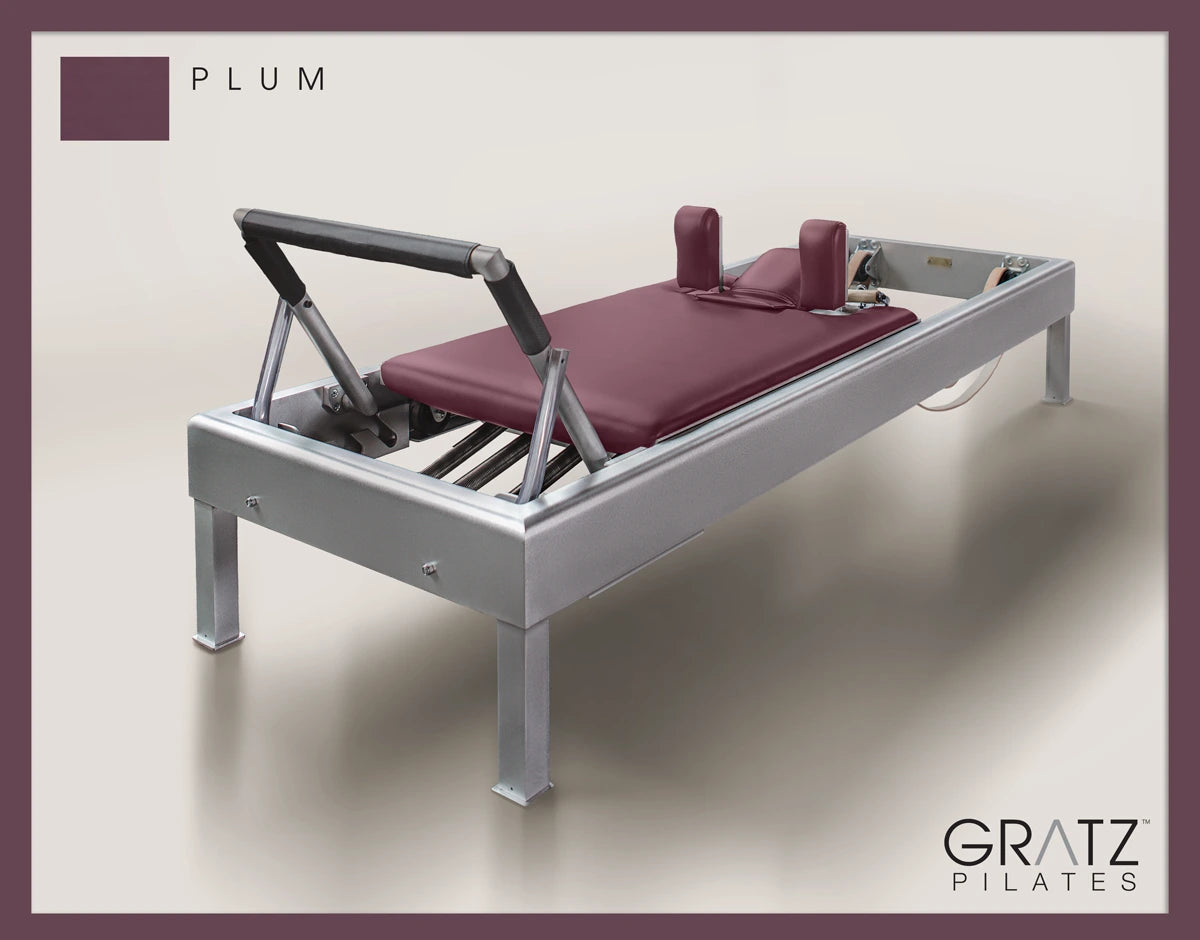

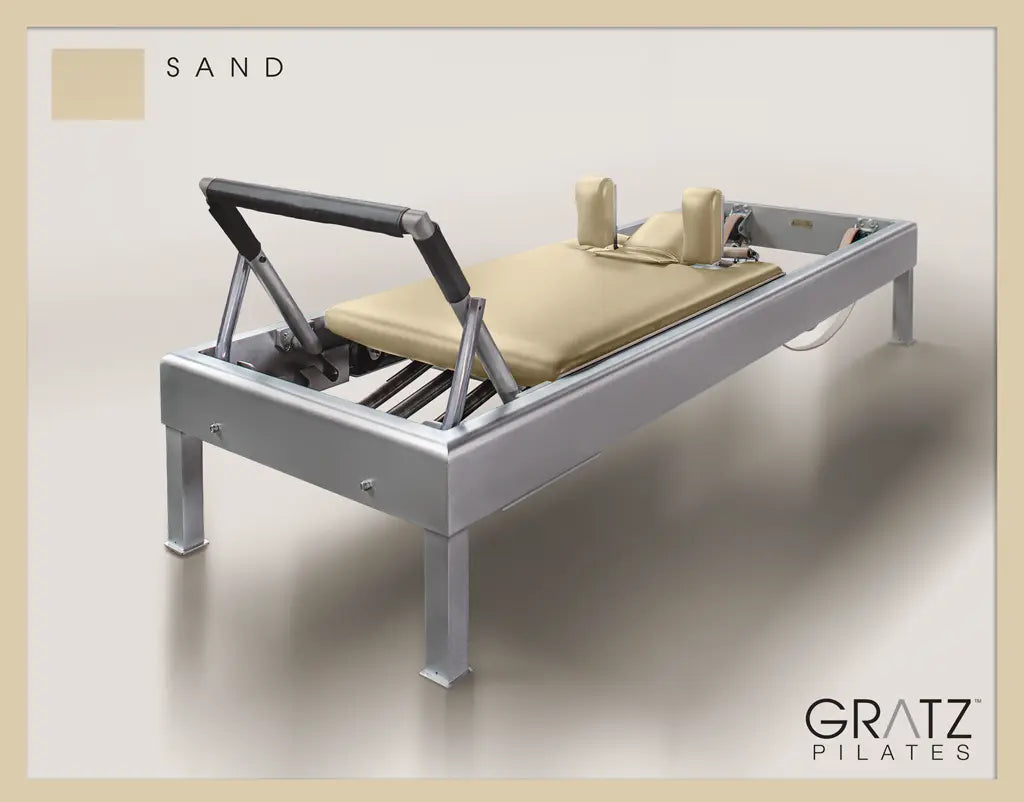

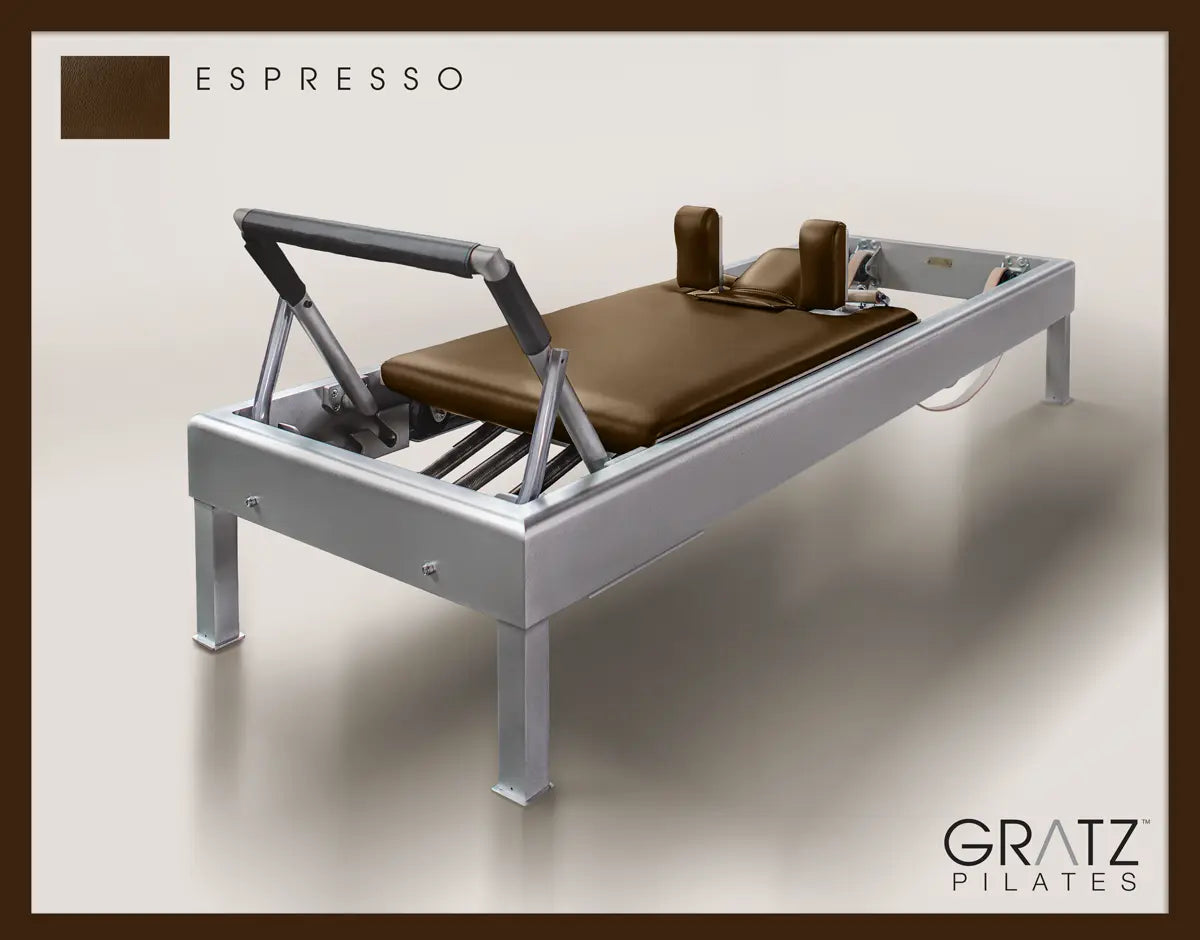

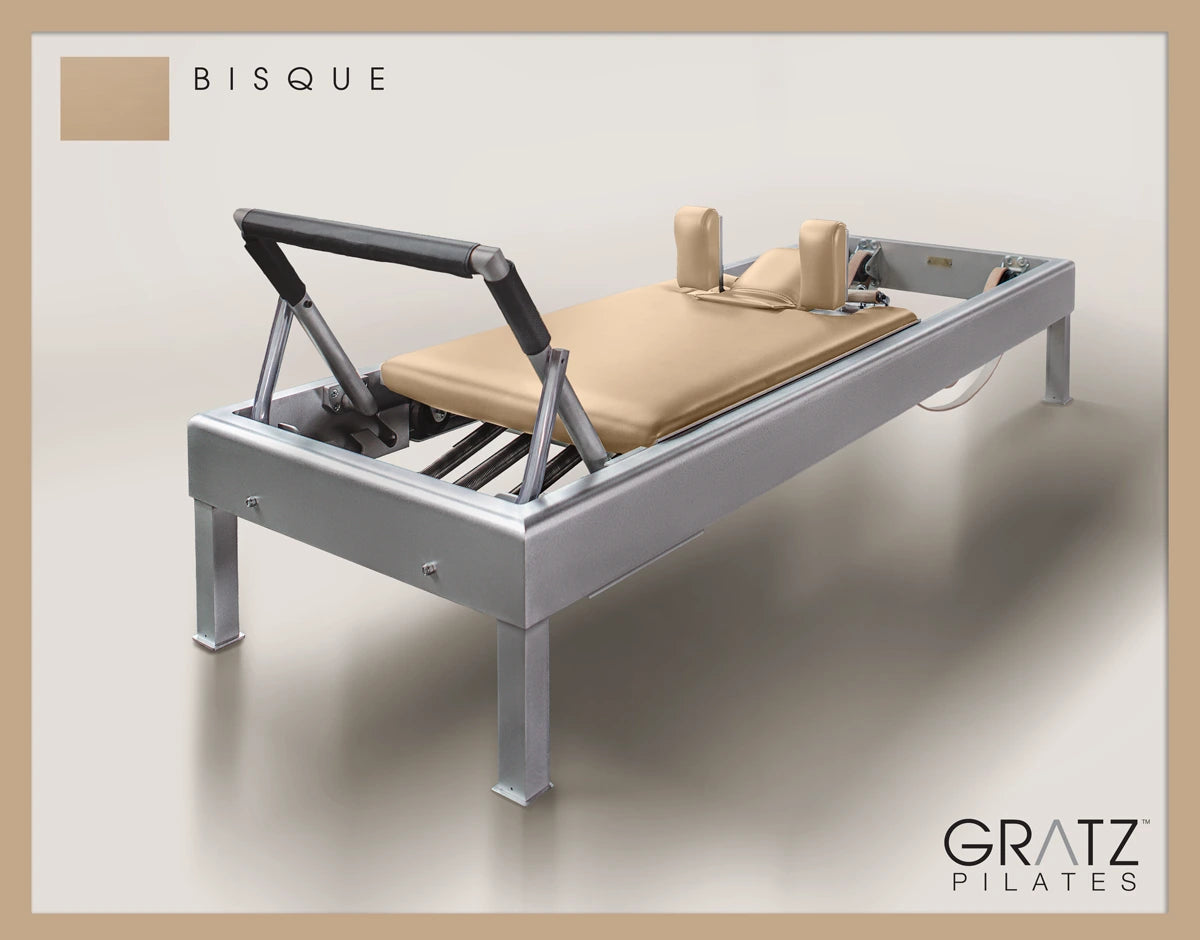

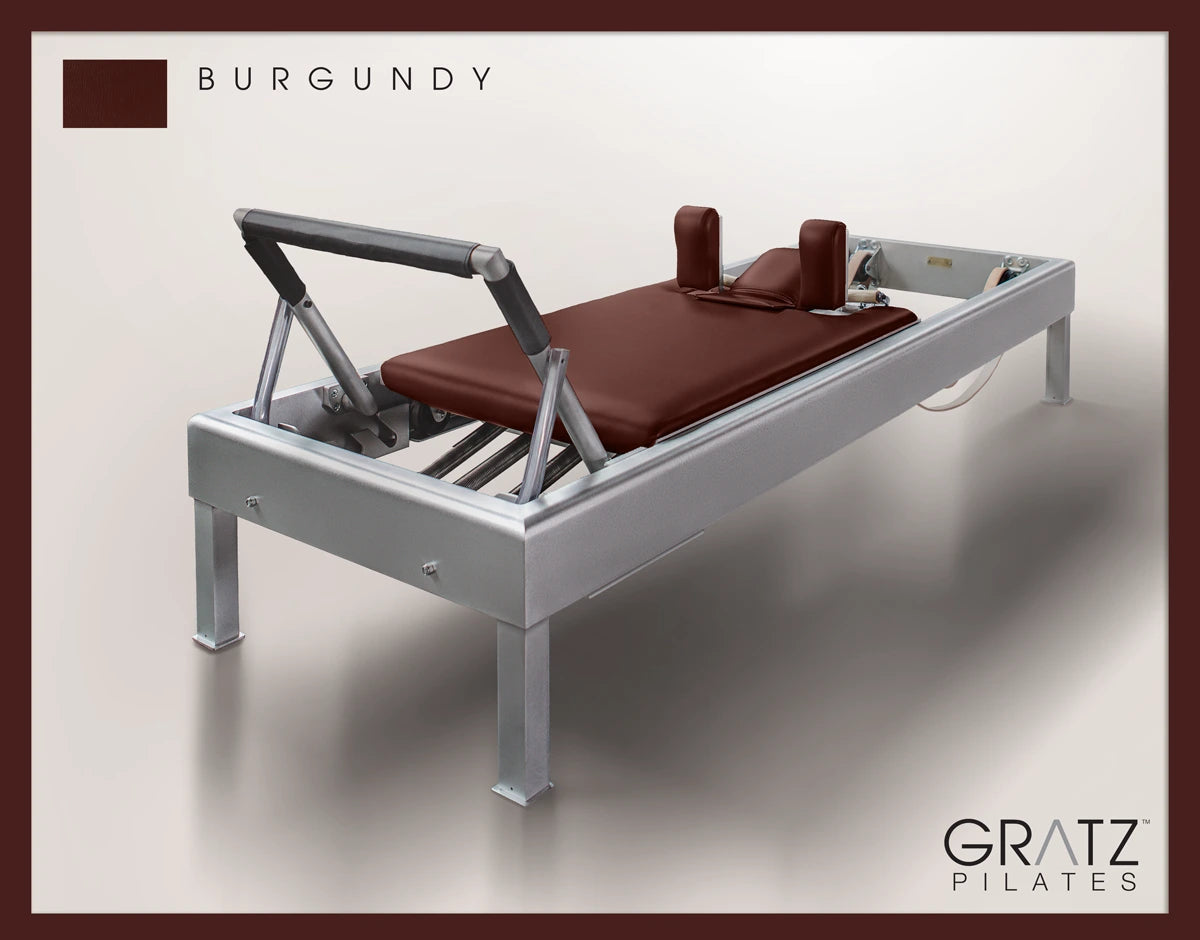

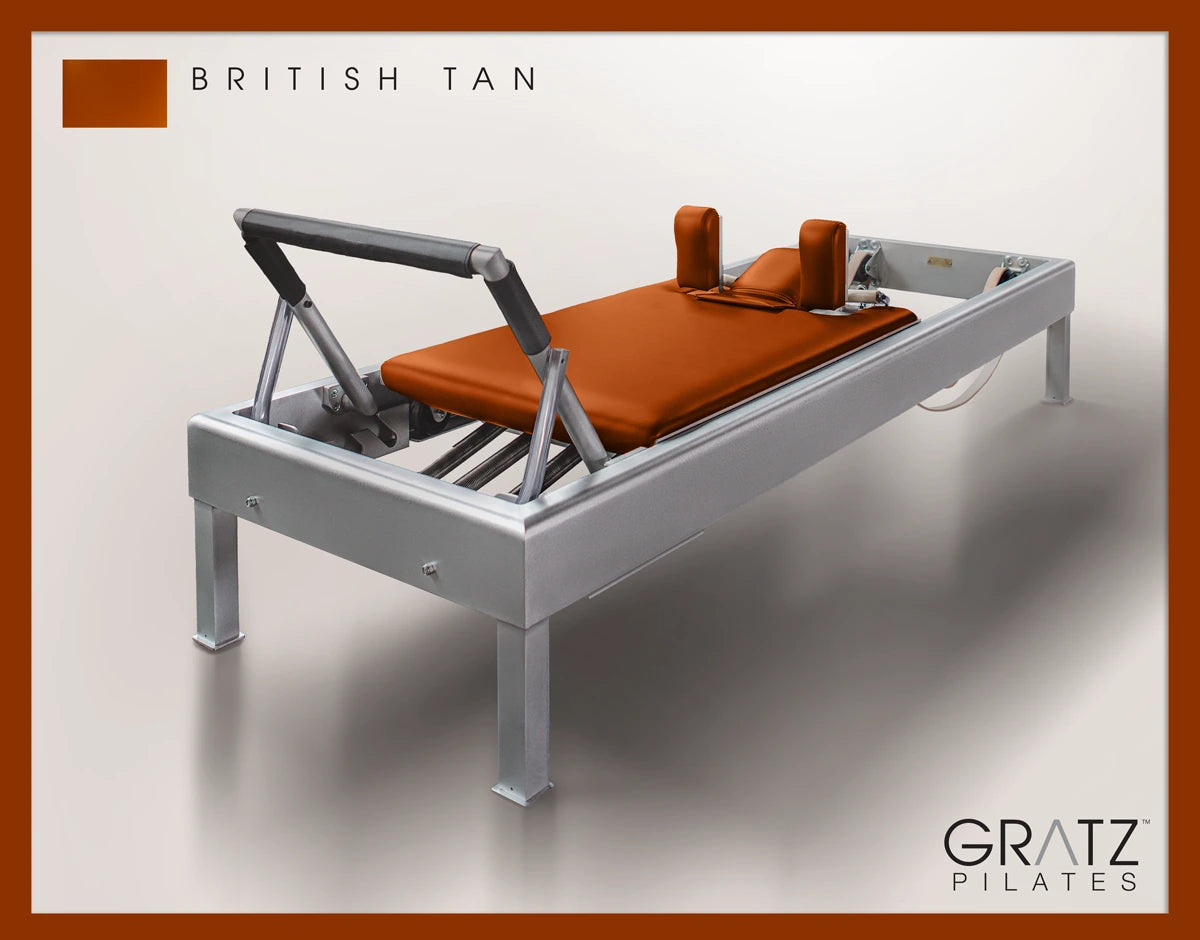

Pilates Archive Reformer in Aluminum
The Archive Reformer is a vintage-inspired edition of the original Gratz Reformer, reintroduced in 2018 to recreate the specifications and feel of early Reformers built from Joseph Pilates’ early Contrology designs.

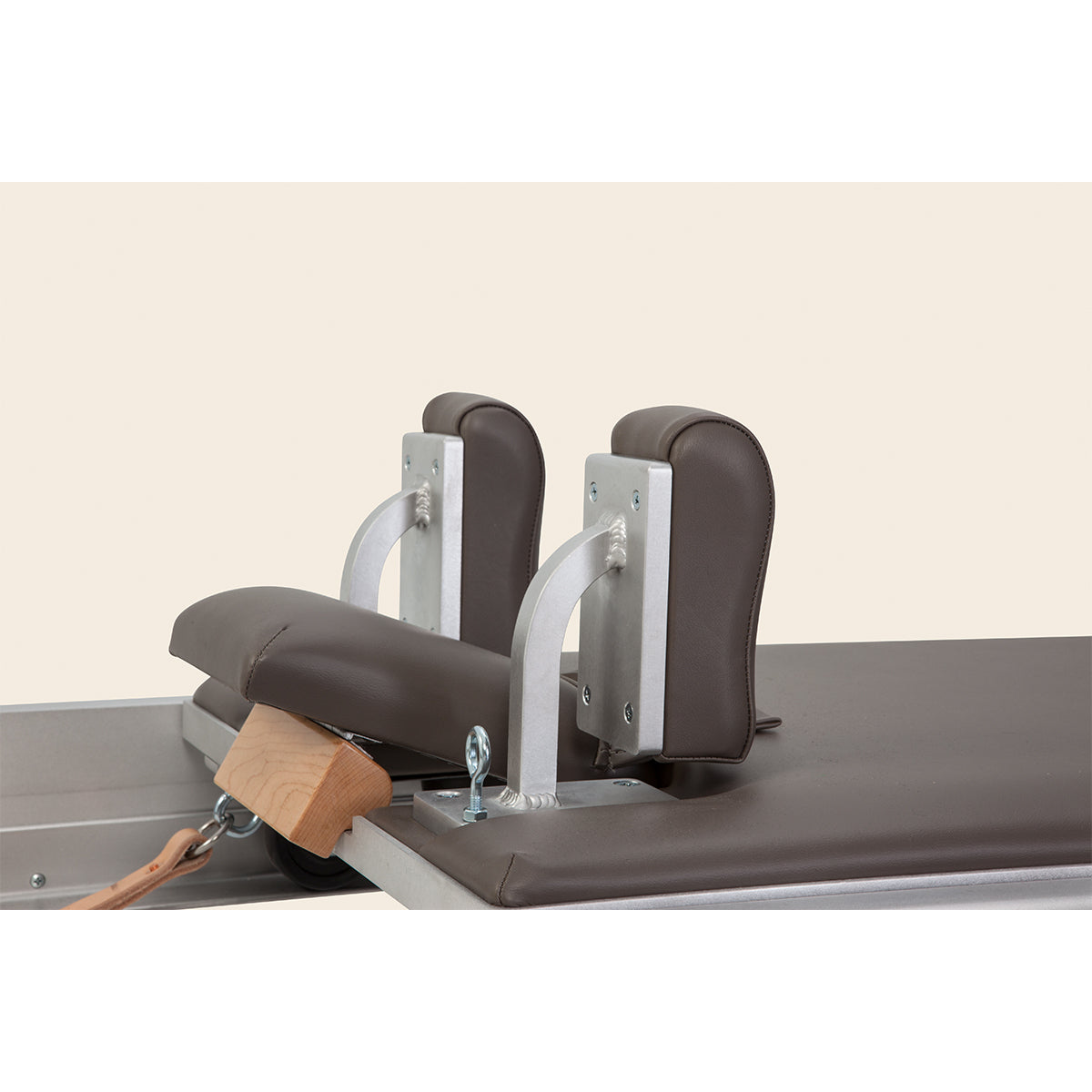

Built with firmer, denser foam on the carriage bed, the Archive Reformer provides a more solid, less cushioned surface. The shorter shoulder blocks reflect the dimensions of early Gratz Reformers.

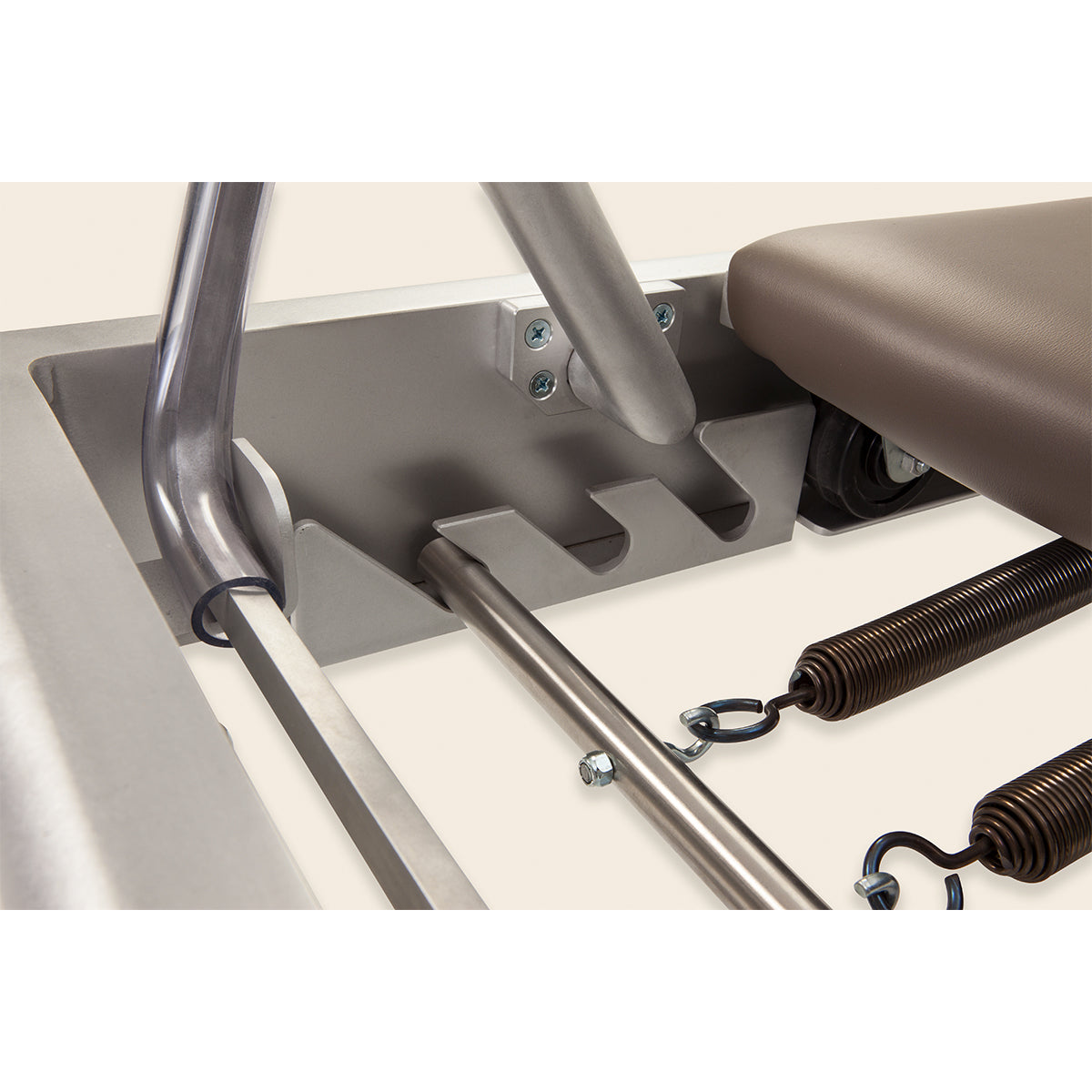

The Gear Slots on the Gear Bar are 1 1/8 inches deeper than those found on the Universal Reformer, creating a greater spring angle and a subtly different resistance pattern that replicates the dynamic feel of vintage Gratz models. The Foot Bar sits lower compared to the Universal Reformer, further contributing to the distinct setup and feel.

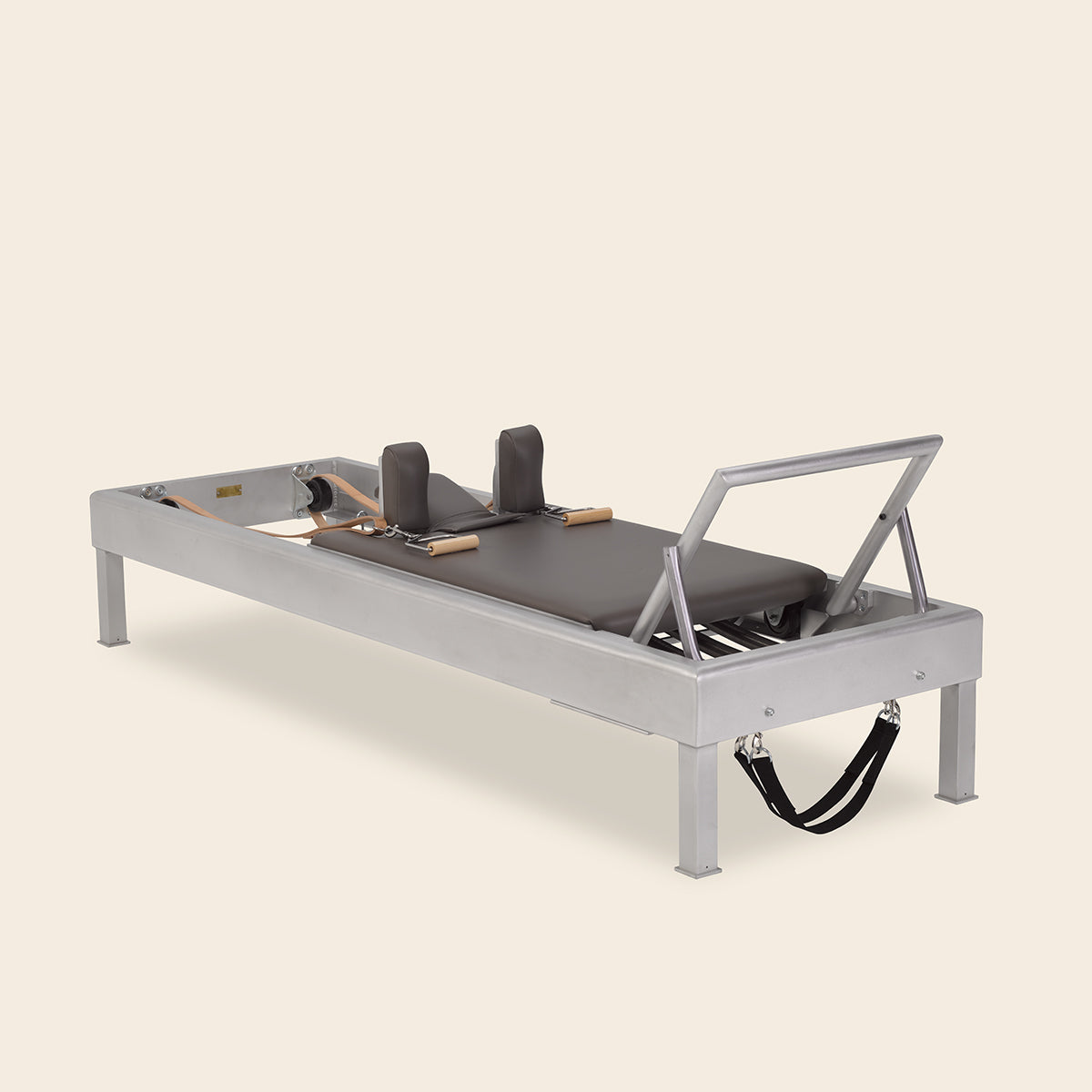

A defining feature of the Archive Reformer is its polished Aluminum Foot Bar paired with an attachable Direct Contact Foot Bar Cover. The unpadded bar delivers a firmer point of contact with minimal cushioning under the feet, allowing for a more immediate and connected response from the apparatus.
-
While a skilled practitioner can work on any Pilates Reformer length, it is helpful to choose a size that supports the widest range of clients, especially when working with different body types, heights, and experience levels.
Workouts can also be fine-tuned by adjusting the gears or using accessories such as the Spacer or TV Box for shorter clients.
For a diverse client base, Gratz provides these general guidelines:
- 80 in: Generally recommended for individuals under 5 ft 8 in, as longer Reformers may be too long for some practitioners.
- 86 in: Generally recommended for individuals between 5 ft 8 in and 6 ft 2 in. This is the most popular choice for studios serving a wide range of client heights and experience levels.
- 89 in: Generally recommended for individuals over 6 ft 2 in.
These are not strict rules, but helpful guidelines to support comfort and alignment. If you have questions about selecting the right size for your studio or clients, we are always here to help.
-
Pilates Archive Reformer Size and Weight Specifications Dimensions Imperial Metric Length 80 in
86 in
89 in
203 cm
218 cm
226 cm
Width 26 in 66 cm Height 13.75 in 35 cm Weight 120 lbs
129 lbs
137 lbs
54.4 kg
58.5 kg
62.1 kg
Pilates Archive Reformer Box Dimensions Dimensions Imperial Metric Length 92 in 234 cm Width 30 in 76 cm Height 17 in 43.2 cm
Pilates Archive Reformer Includes
- Reformer Leather Straps

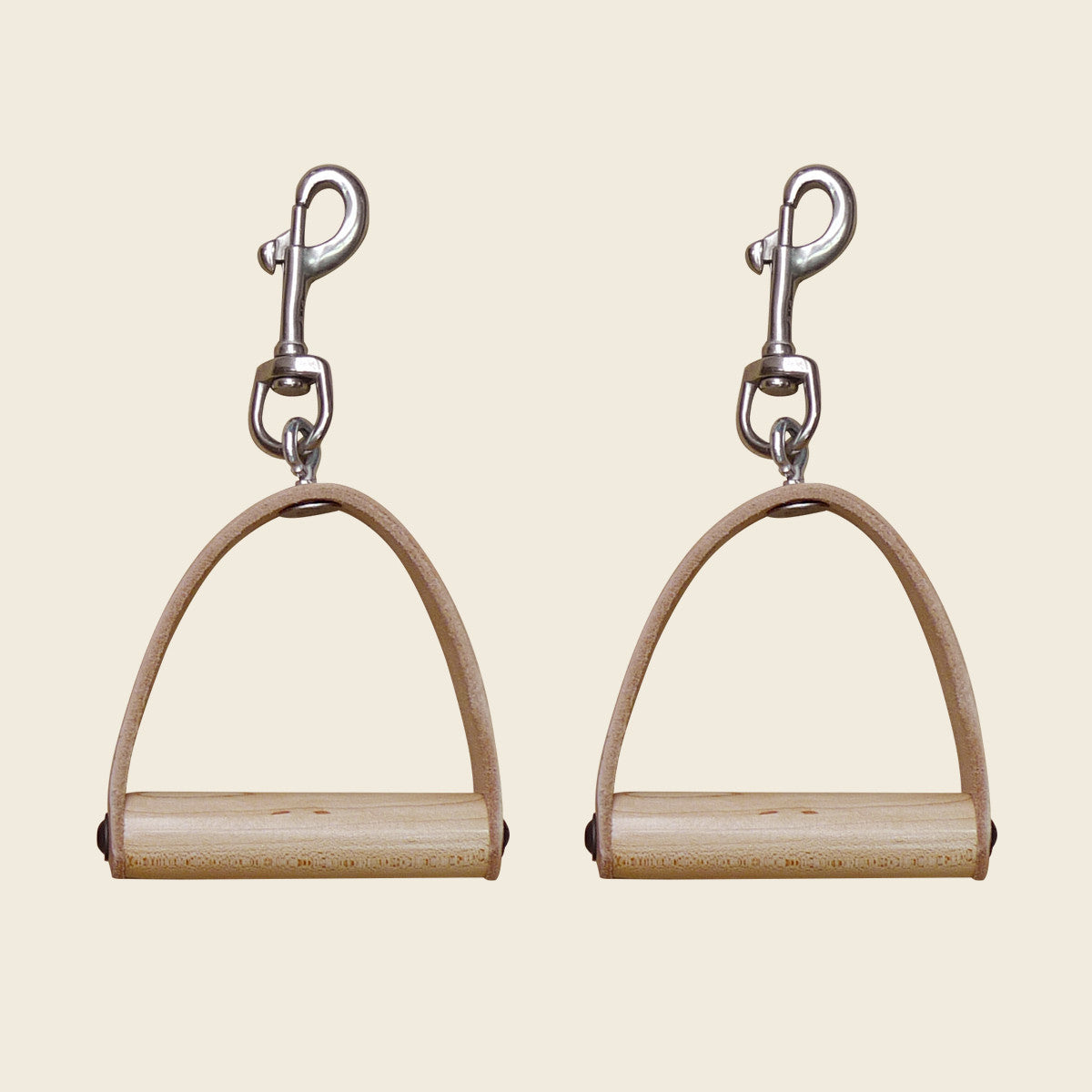

- Leather and Wood Handles (Pair)

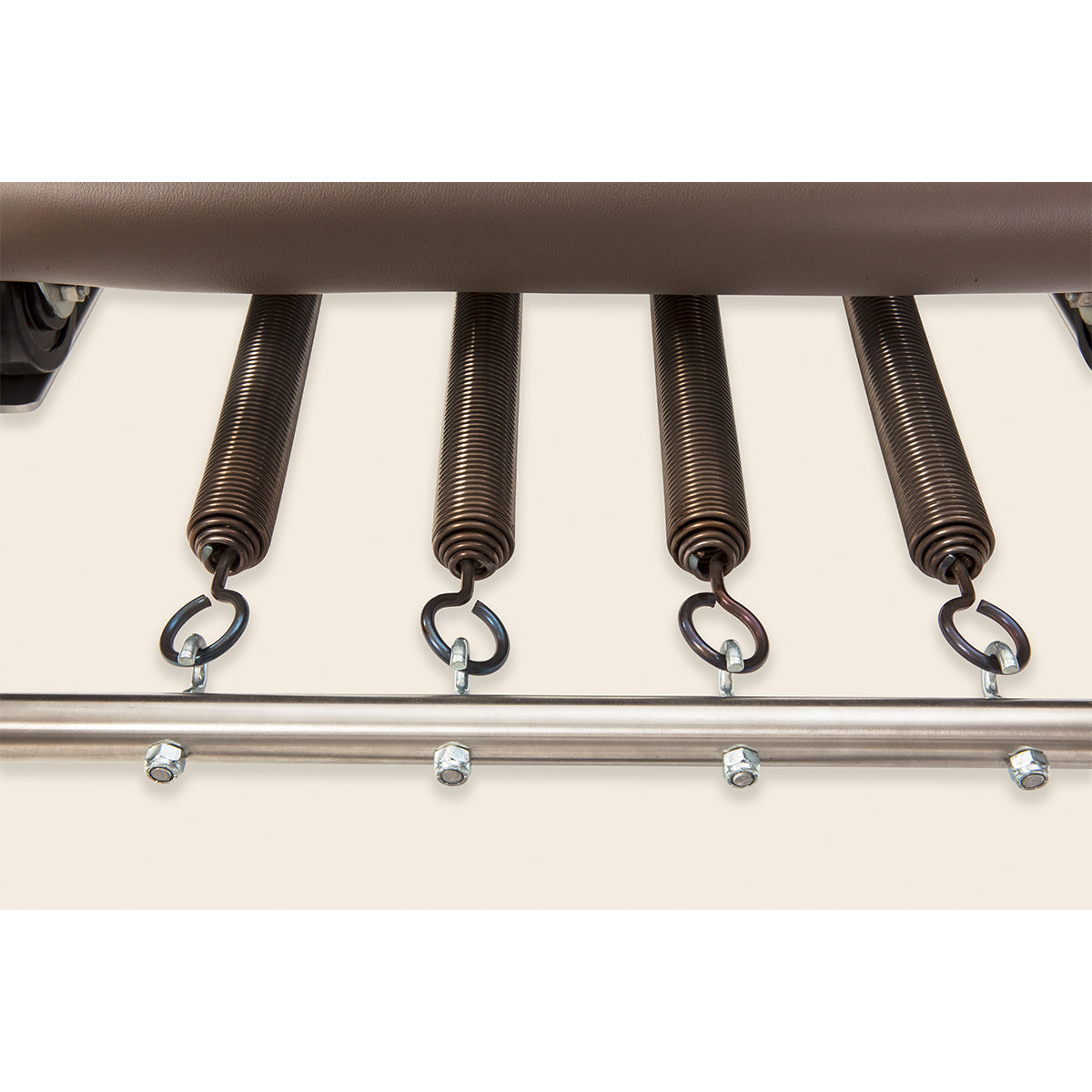

- Vintage Long Neck Springs or Standard Reformer Springs
- Reformer Box
- Polished Aluminum Foot Bar with attachable Direct Contact Foot Bar Cover
- Pair of 20-Inch Foot Straps
- 27-Inch Extension Black Canvas Straps
- Standard Weighted Pole – 1 lb

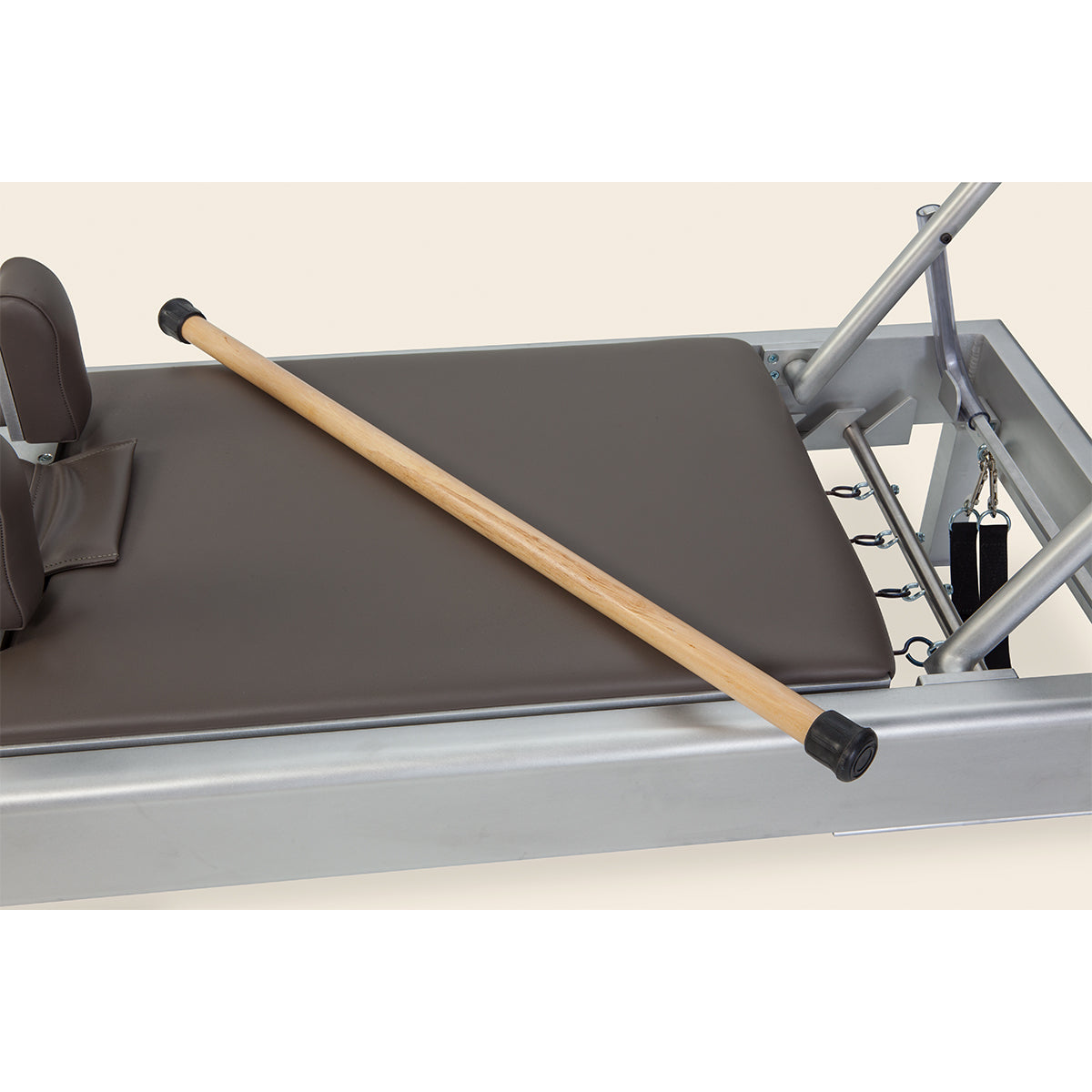

- 36-Inch Wood Pole – 1 lb

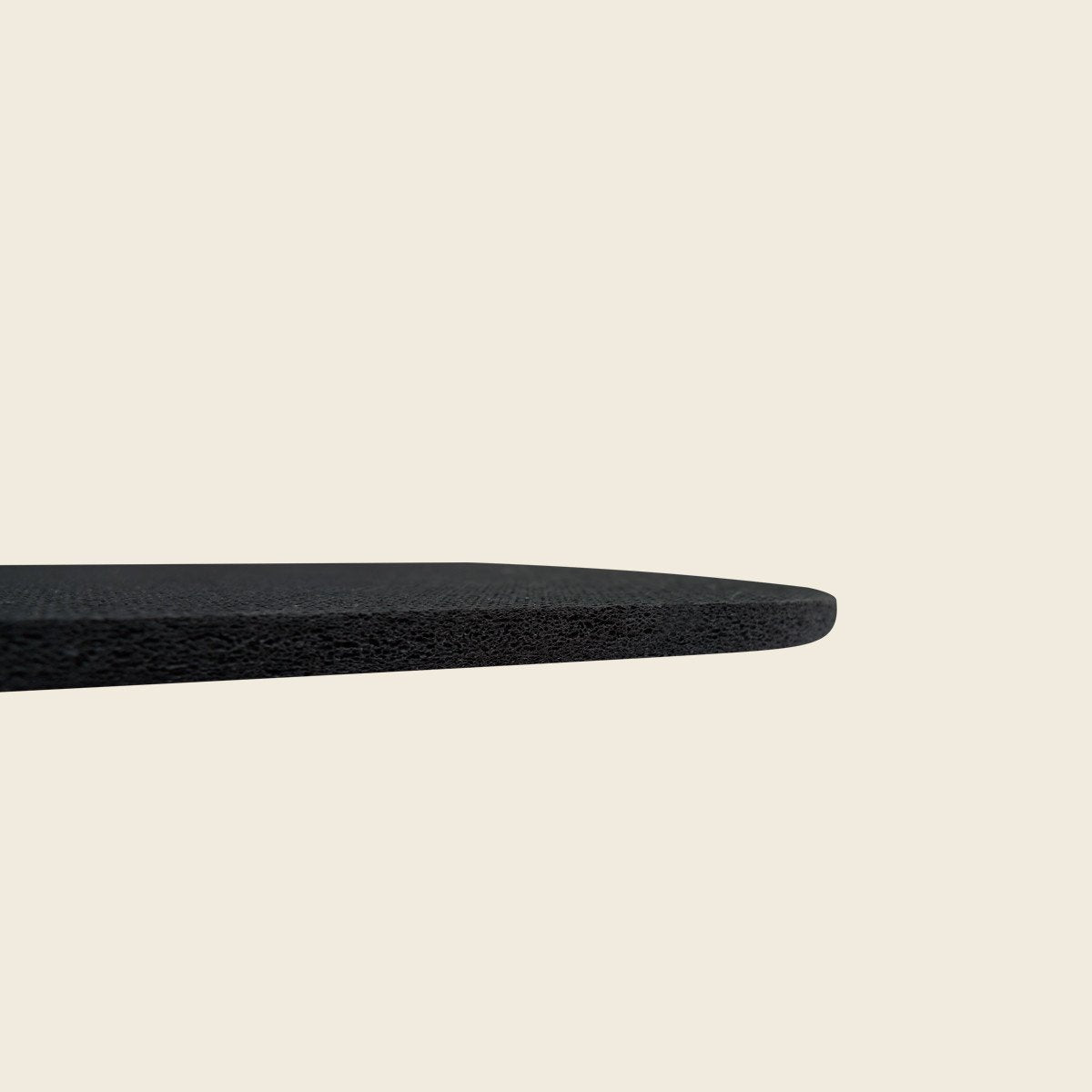

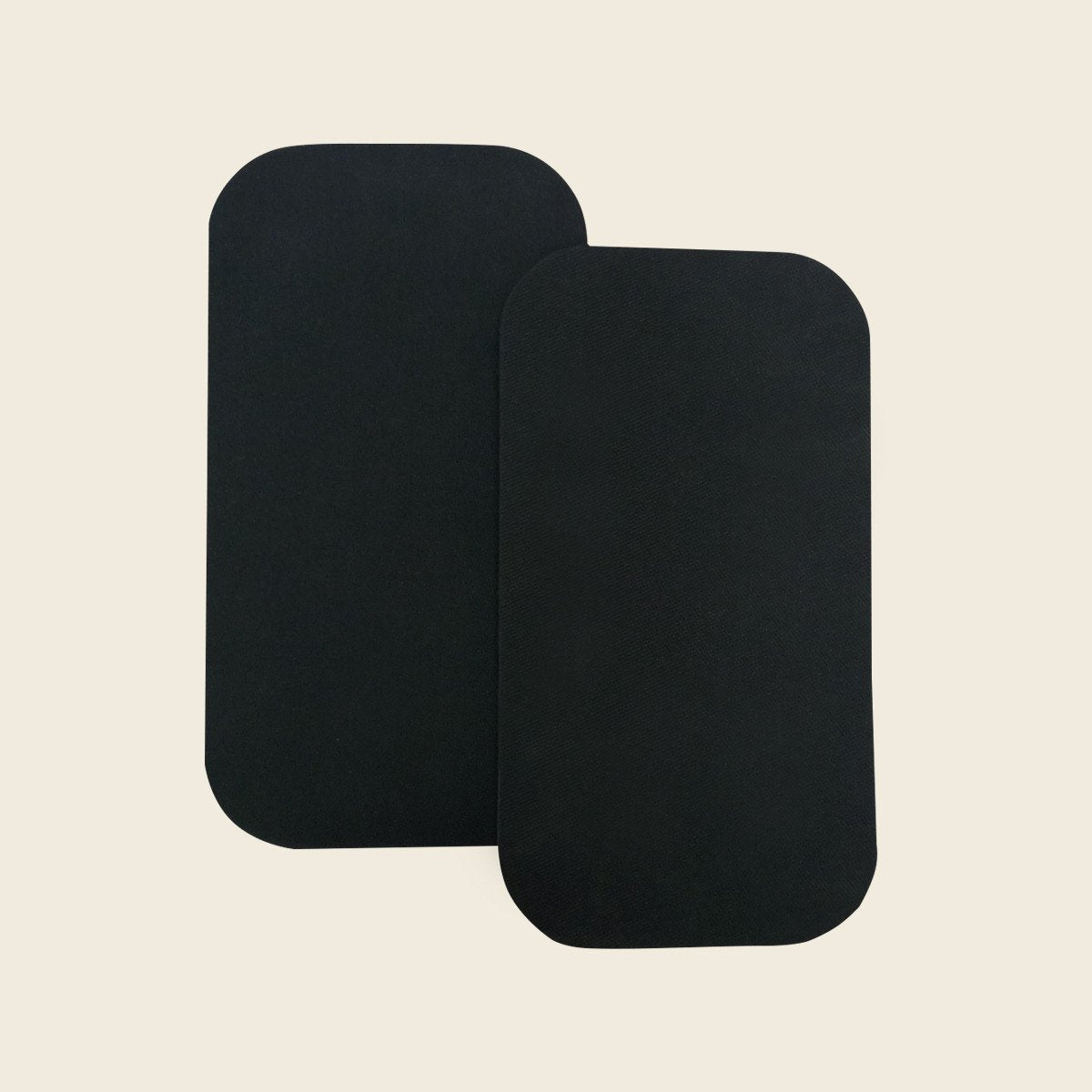

- Thick Rubber Pads
- Sandwich Gear Stopper
How to Use Pilates Reformer
Explore Pilatesology’s Exercise Encyclopedia for expert instruction and demonstrations on this apparatus. Their extensive library is a valuable resource for exploring the Classical Pilates method and deepening your practice.
Pilates Reformer Exercise Encyclopedia – Pilatesology
Lead Time
All orders are custom made. Estimated lead time for this product is 3 months.
